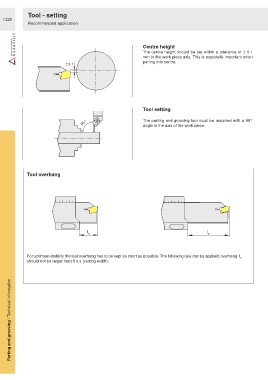

Tool - setting
C225
Recommended application
Centre height
The centre height should be set within a tolerance of ± 0.1
mm to the work piece axis. This is especially important when
parting into centre.
0,1
Tool setting
90° The parting and grooving tool must be mounted with a 90°
angle to the axis of the work piece.
Tool overhang
l a l a
For optimum stability the tool overhang has to be kept as short as possible. The following rule can be applied: overhang l
a
should not be larger than 8 x s (cutting width).
Parting and grooving / Technical information
