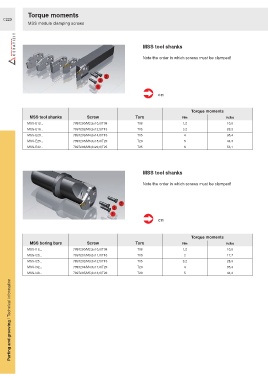

P. 834
Torque moments
C229
MSS module clamping screws
MSS tool shanks
Note the order in which screws must be clamped!
C11
Torque moments
MSS tool shanks Screw Torx Nm in.lbs
MSS-E12... 7897200/M2,5x10,0/T08 T08 1,2 10,6
MSS-E16... 7897202/M3,5x12,5/T15 T15 3,2 28,3
MSS-E20... 7897203/M4,0x14,0/T15 T15 4 35,4
MSS-E25... 7897205/M5,0x18,0/T20 T20 5 44,3
MSS-E32... 7897206/M6,0x20,0/T25 T25 6 53,1
MSS tool shanks
Note the order in which screws must be clamped!
C11
Torque moments
MSS boring bars Screw Torx Nm in.lbs
MSS-I16... 7897200/M2,5x10,0/T08 T08 1,2 10,6
MSS-I20... 7897201/M3,0x11,0/T10 T10 2 17,7
MSS-I25... 7897202/M3,5x12,5/T15 T15 3,2 28,3
MSS-I32... 7897204/M4,5x17,0/T20 T20 4 35,4
MSS-I40... 7897205/M5,0x18,0/T20 T20 5 44,3
Parting and grooving / Technical information
