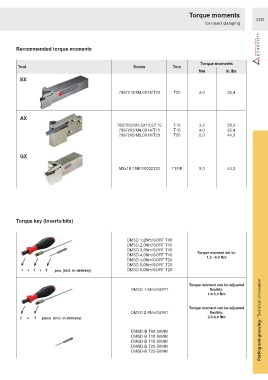

Page 835 - Ceratizit Catalog

Torque moments
C230
for insert clamping

Recommended torque moments

Torque moments
Tool Screw Torx
Nm in.lbs

SX

7897218/M4,0X18/T20 T20 4,0 35,4

AX
7897202/M3,5X12,5/T15 T15 3,2 28,3
7897203/M4,0X14/T15 T15 4,0 35,4
7897205/M5,0X18/T20 T20 5,0 44,3

GX

M5x18-15IP/10002133 T15IP 5,0 44,3

Torque key (inserts/bits)

DMSD 1,2Nm/SORT T08
DMSD 2,0Nm/SORT T10
DMSD 3,2Nm/SORT T15
Torque moment set to:
DMSD 4,0Nm/SORT T15
1.2 - 6.0 Nm
DMSD 4,0Nm/SORT T20
DMSD 5,0Nm/SORT T20
1 + 1 + 5 pcs. (incl. in delivery) DMSD 6,0Nm/SORT T25

Torque moment can be adjusted
DMSD 1-5Nm/SORT flexibly:
1.0-5.0 Nm

Torque moment can be adjusted
DMSD 2-8Nm/SORT flexibly:
1 + 1 piece (incl. in delivery) 2.0-8.0 Nm Parting and grooving / Technical information

DMSD-B T08-50MM
DMSD-B T10-50MM
DMSD-B T15-50MM
DMSD-B T20-50MM
DMSD-B T25-50MM
