P. 866

MSS-SX
  C261

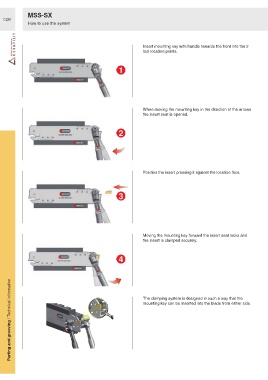

             How to use the system




                                                                Insert mounting key with handle towards the front into the 2
                                                                tool location points.














                                                                When moving the mounting key in the direction of the arrows
                                                                the insert seat is opened.














                                                                Position the insert pressing it against the location face.
















                                                                Moving the mounting key forward the insert seat locks and
                                                                the insert is clamped securely.









      Parting and grooving / Technical information



                                                                The clamping system is designed in such a way that the
                                                                mounting key can be inserted into the blade from either side.
