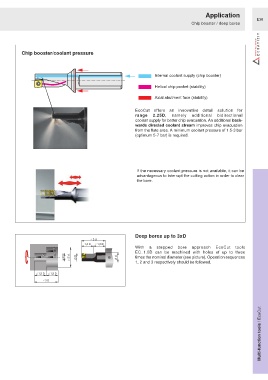

Page 963 - Ceratizit Catalog

Application
E36
Chip booster / deep bores

Chip booster/coolant pressure

Internal coolant supply (chip booster)

Helical chip pocket (stability)

Axial abutment face (stability)

EcoCut offers an innovative detail solution for
range 2.25D, namely additional bidirectional
coolant supply for better chip evacuation. An additional back-
wards directed coolant stream improves chip evacuation
from the flute area. A minimum coolant pressure of 1.5-3 bar
(optimum 5-7 bar) is required.

If the necessary coolant pressure is not available, it can be
advantageous to interrupt the cutting action in order to clear
the bore.

Deep bores up to 3xD

With a stepped bore approach EcoCut tools
EC..1.5D can be machined with holes of up to three
times the nominal diameter (see picture). Operation sequences
1, 2 and 3 respectively should be followed.

Multi-function tools / EcoCut
