P. 967

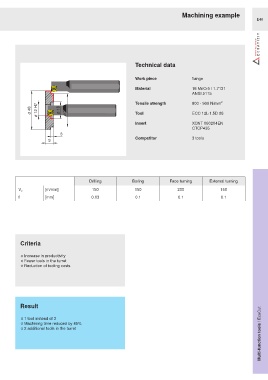

Machining example
E40
Technical data
Work piece flange
Material 16 MnCr5 / 1.7131
ANSI 5115
48 12 H7 18 39,1 Tensile strength 800 - 900 N/mm 2
ø ø Tool ECC 12L-1.5D 06
ø ø
Insert XCNT 060204EN
CTCP435
3
Competitor 3 tools
9
Drilling Boring Face turning External turning
V c [m/min] 150 150 200 150
f [mm] 0.03 0.1 0.1 0.1
Criteria
○ Increase in productivity
○ Fewer tools in the turret
○ Reduction of tooling costs
Result
Multi-function tools / EcoCut
○ 1 tool instead of 3
○ Machining time reduced by 45%
○ 2 additional tools in the turret
