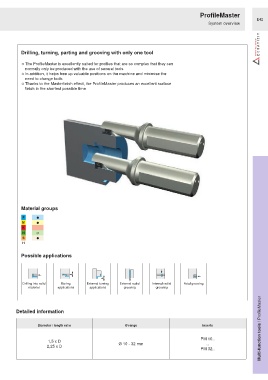

P. 969
ProfileMaster
E42
System overview
Drilling, turning, parting and grooving with only one tool
○ The ProfileMaster is excellently suited for profiles that are so complex that they can
normally only be produced with the use of several tools
○ In addition, it helps free up valuable positions on the machine and minimise the
need to change tools
○ Thanks to the Masterfinish effect, the ProfileMaster produces an excellent surface
finish in the shortest possible time
Material groups
P ●
M ●
K
N ○
S ●
H
Possible applications
Drilling into solid Boring External turning External radial Internal radial Axial grooving
material applications applications grooving grooving
Multi-function tools / ProfileMaster
Detailed information
Diameter / length ratio Ø range Inserts
PM 10..
1,5 x D
Ø 10 - 32 mm ..
2,25 x D
PM 32..
