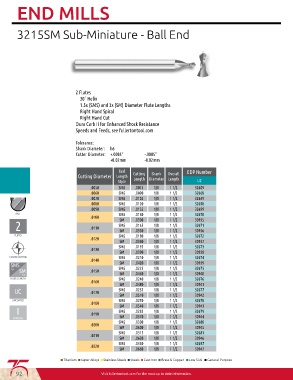

Page 94 - Fullerton Tool Catalog

END MILLS

3215SM Sub-Miniature - Ball End

2 Flutes
30˚ Helix
1.5x (SMS) and 3x (SM) Diameter Flute Lengths
Right Hand Spiral
Right Hand Cut
Dura Carb II for Enhanced Shock Resistance
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0005” -.0005”
+0.02mm -0.02mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall
Length Diameter Length
Style UC
.0050 SMS .0075 1/8 1 1/2 32609
.0060 SMS .0090 1/8 1 1/2 32668
.0070 SMS .0105 1/8 1 1/2 32669
.0080 SMS .0120 1/8 1 1/2 32698
.0090 SMS .0135 1/8 1 1/2 32699
SMS .0150 1/8 1 1/2 32670
.0100
SM .0300 1/8 1 1/2 30935
SMS .0165 1/8 1 1/2 32671
.0110
SM .0330 1/8 1 1/2 30936
SMS .0180 1/8 1 1/2 32672
.0120
SM .0360 1/8 1 1/2 30937
SMS .0195 1/8 1 1/2 32673
.0130
SM .0390 1/8 1 1/2 30938
SMS .0210 1/8 1 1/2 32674
.0140
SMS SM .0420 1/8 1 1/2 30939
1.5x SMS .0225 1/8 1 1/2 32675
SM .0150
3.0x SM .0450 1/8 1 1/2 30940
FLUTE LENGTH SMS .0240 1/8 1 1/2 32676
.0160
SM .0480 1/8 1 1/2 30941
SMS .0255 1/8 1 1/2 32677
.0170
SM .0510 1/8 1 1/2 30942
UNCOATED SMS .0270 1/8 1 1/2 32678
.0180 SM .0540 1/8 1 1/2 30943
I .0190 SMS .0285 1/8 1 1/2 32679
IMPERIAL SM .0570 1/8 1 1/2 30944
.0200 SMS .0300 1/8 1 1/2 32680
SM .0600 1/8 1 1/2 30945
SMS .0315 1/8 1 1/2 32681
.0210
SM .0630 1/8 1 1/2 30946
SMS .0330 1/8 1 1/2 32697
.0220
SM .0660 1/8 1 1/2 30947
■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
