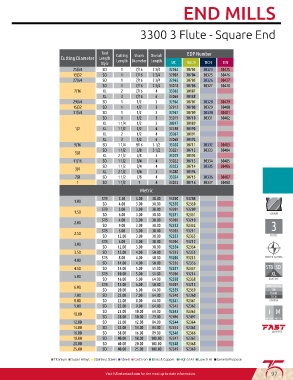

P. 99
END MILLS
3300 3 Flute - Square End
Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC TIALN TICN TIN
25/64 SD 1 7/16 2 3/4 32964 30703 30324 30475
13/32 SD 1 7/16 2 3/4 32902 30704 30325 30476
27/64 SD 1 7/16 2 3/4 32965 30705 30326 30477
SD 1 7/16 2 3/4 33018 30706 30327 30478
7/16 XL 2 7/16 4 33065 30187
XL 3 7/16 6 33066 30188
29/64 SD 1 1/2 3 32966 30707 30328 30479
15/32 SD 1 1/2 3 32912 30708 30329 30480
31/64 SD 1 1/2 3 32967 30709 30330 30481
SD 1 1/2 3 33019 30710 30331 30482
XL 1 1/4 1/2 3 30247 30189
1/2 XL 1 1/2 1/2 4 32598 30190
XL 2 1/2 4 33067 30191
XL 3 1/2 6 33068 30192
9/16 SD 1 1/4 9/16 3 1/2 33020 30711 30332 30483
SD 1 1/2 5/8 3 1/2 33021 30712 30333 30484
5/8
XL 2 1/2 5/8 5 33079 30193
11/16 SD 1 1/2 3/4 4 33022 30713 30334 30485
SD 1 1/2 3/4 4 33023 30714 30335 30486
3/4
XL 2 1/2 3/4 5 33080 30194
7/8 SD 1 1/2 7/8 4 33024 30715 30336 30487
1 SD 1 1/2 1 4 33025 30716 30337 30488
Metric
STB 2.50 3.00 38.00 93200 93208
1.00
SD 4.00 3.00 38.00 92330 92350
STB 3.00 3.00 38.00 93201 93209
1.50
SD 6.00 3.00 38.00 92331 92351
STB 4.00 3.00 38.00 93202 93210
2.00
SD 9.00 3.00 38.00 92332 92352
STB 5.00 3.00 38.00 93203 93211
2.50
SD 12.00 3.00 38.00 92333 92353
STB 6.00 3.00 38.00 93204 93212
3.00
SD 12.00 3.00 38.00 92334 92354
3.50 SD 12.00 4.00 50.00 92335 92355
STB 8.00 4.00 50.00 93205 93213
4.00
SD 14.00 4.00 50.00 92336 92356
4.50 SD 14.00 5.00 51.00 92337 92357
STB 10.00 5.00 51.00 93206 93214
5.00
SD 16.00 5.00 64.00 92338 92358
STB 13.00 6.00 50.00 93207 93215
6.00 UNCOATED
SD 20.00 6.00 64.00 92339 92359 TIN
7.00 SD 22.00 7.00 64.00 92340 92360 TIALN
TICN
8.00 SD 22.00 8.00 64.00 92341 92361
9.00 SD 22.00 9.00 64.00 92342 92362
SD 25.00 10.00 64.00 92343 92363 I M
10.00
SD 28.00 10.00 73.00 92496 92497 IMPERIAL METRIC
12.00 SD 25.00 12.00 84.00 92344 92364
14.00 SD 32.00 14.00 84.00 92345 92365
16.00 SD 38.00 16.00 89.00 92346 92366
18.00 SD 40.00 18.00 100.00 92347 92367
20.00 SD 40.00 20.00 100.00 92348 92368
25.00 SD 40.00 25.00 100.00 92349 92369
■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ High Si Al ■ Low Si Al ■ General Purpose
Visit fullertontool.com for the most up to date information. 97
