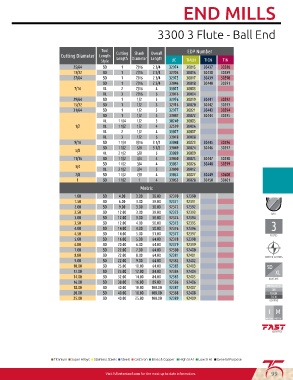

Page 101 - Fullerton Tool Catalog

END MILLS

3300 3 Flute - Ball End

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC TIALN TICN TIN
25/64 SD 1 7/16 2 3/4 32974 30815 30437 30588
13/32 SD 1 7/16 2 3/4 32906 30816 30438 30589
27/64 SD 1 7/16 2 3/4 32975 30817 30439 30590
SD 1 7/16 2 3/4 33046 30818 30440 30591
7/16 XL 2 7/16 4 33075 30003
XL 3 7/16 6 33076 30004
29/64 SD 1 1/2 3 32976 30819 30441 30592
15/32 SD 1 1/2 3 32916 30820 30442 30593
31/64 SD 1 1/2 3 32977 30821 30443 30594
SD 1 1/2 3 33047 30822 30444 30595
XL 1 1/4 1/2 3 30249 30005
1/2 XL 1 1/2 1/2 4 32599 30006
XL 2 1/2 4 33077 30007
XL 3 1/2 6 33078 30008
9/16 SD 1 1/4 9/16 3 1/2 33048 30823 30445 30596
SD 1 1/2 5/8 3 1/2 33049 30824 30446 30597
5/8
XL 2 1/2 5/8 5 33089 30009
11/16 SD 1 1/2 3/4 4 33050 30825 30447 30598
SD 1 1/2 3/4 4 33051 30826 30448 30599
3/4
XL 2 1/2 3/4 5 33090 30012
7/8 SD 1 1/2 7/8 4 33052 30827 30449 30600
1 SD 1 1/2 1 4 33053 30828 30450 30601
Metric
1.00 SD 4.00 3.00 38.00 92370 92390
1.50 SD 6.00 3.00 38.00 92371 92391
2.00 SD 9.00 3.00 38.00 92372 92392
2.50 SD 12.00 3.00 38.00 92373 92393
3.00 SD 12.00 3.00 38.00 92374 92394
3.50 SD 12.00 4.00 50.00 92375 92395
4.00 SD 14.00 4.00 50.00 92376 92396
4.50 SD 14.00 5.00 51.00 92377 92397
5.00 SD 16.00 5.00 64.00 92378 92398
6.00 SD 20.00 6.00 64.00 92379 92399
7.00 SD 22.00 7.00 64.00 92380 92400
8.00 SD 22.00 8.00 64.00 92381 92401
9.00 SD 22.00 9.00 64.00 92382 92402
10.00 SD 25.00 10.00 64.00 92383 92403
12.00 SD 25.00 12.00 84.00 92384 92404
14.00 SD 32.00 14.00 84.00 92385 92405
16.00 SD 38.00 16.00 89.00 92386 92406
18.00 SD 40.00 18.00 100.00 92387 92407 UNCOATED
TIN
20.00 SD 40.00 18.00 100.00 92388 92408 TIALN
25.00 SD 40.00 25.00 100.00 92389 92409 TICN

I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ High Si Al ■ Low Si Al ■ General Purpose

Visit fullertontool.com for the most up to date information. 99
