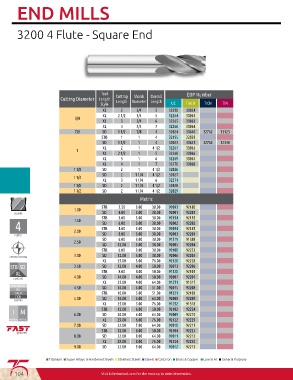

Page 106 - Fullerton Tool Catalog

END MILLS

3200 4 Flute - Square End

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC TIALN TICN TIN
XL 2 3/4 5 32250 30024
XL 2 1/2 3/4 5 32264 30061
3/4
XL 3 3/4 6 32265 30063
XL 4 3/4 7 32266 30064
7/8 SD 1 1/2 7/8 4 32024 30640 32762 33123
STB 1 1 4 32155 32838
SD 1 1/2 1 4 32025 30641 32763 32338
XL 2 1 4 1/2 32267 30065
1
XL 2 1/2 1 5 32268 30066
XL 3 1 6 32269 30067
XL 4 1 7 32270 30068
1 1/8 SD 2 1 4 1/2 32026
SD 2 1 1/4 4 1/2 32027
1 1/4
XL 3 1 1/4 6 32271
1 3/8 SD 2 1 1/4 4 1/2 32028
1 1/2 SD 2 1 1/4 4 1/2 32029
Metric
STB 2.50 3.00 38.00 92093 92180
1.00
SD 4.00 3.00 38.00 92001 92201
STB 3.00 3.00 38.00 92194 92195
1.50
SD 6.00 3.00 38.00 92002 92202
STB 4.00 3.00 38.00 92094 92181
2.00
SD 8.00 3.00 38.00 92003 92203
SD 6.00 3.00 38.00 91319 91388
2.50
SD 12.00 3.00 38.00 92005 92204
STB 6.00 3.00 38.00 92100 92223
3.00 SD 12.00 3.00 38.00 92006 92205
XL 25.00 3.00 76.00 92120 92228
3.50 SD 12.00 4.00 50.00 92073 92206
STB 8.00 4.00 50.00 91320 92101
4.00 SD 14.00 4.00 50.00 92007 92207
XL 25.00 4.00 64.00 91251 91317
UNCOATED 4.50 SD 14.00 5.00 51.00 92075 92208
TIN
TIALN STB 10.00 5.00 51.00 91321 92103
TICN 5.00 SD 16.00 5.00 64.00 92008 92209
XL 25.00 5.00 76.00 91252 91318
I M 6.00 STB 12.00 6.00 50.00 92102 92224
64.00
6.00
20.00
92210
92009
SD
IMPERIAL METRIC XL 29.00 6.00 76.00 92122 92229
7.00 SD 22.00 7.00 64.00 92010 92211
STB 12.00 8.00 50.00 92104 92225
8.00 SD 22.00 8.00 64.00 92011 92212
XL 29.00 8.00 76.00 92124 92230
9.00 SD 22.00 9.00 64.00 92012 92213
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
