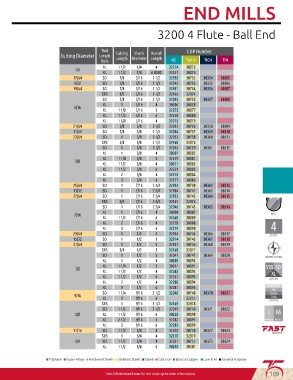

Page 111 - Fullerton Tool Catalog

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC TIALN TICN TIN
XL 1 1/2 1/4 4 32274 30075
1/4
XL 1 1/2 1/4 6.0000 32557 30076
17/64 SD 7/8 5/16 2 1/2 32930 30732 30354 30505
9/32 SD 7/8 5/16 2 1/2 32042 30733 30355 30506
19/64 SD 7/8 5/16 2 1/2 32931 30734 30356 30507
STB 1/2 5/16 2 1/2 32165 32874
SD 7/8 5/16 2 1/2 32043 30735 30357 30508
XL 1 5/16 4 30206 30078
5/16
XL 1 1/8 5/16 3 32575 30077
XL 1 1/2 5/16 6 32558 30080
XL 1 5/8 5/16 4 32275 30079
21/64 SD 7/8 3/8 2 1/2 32932 30736 30358 30509
11/32 SD 7/8 3/8 2 1/2 32044 30737 30359 30510
23/64 SD 1 3/8 2 1/2 32933 30738 30360 30511
STB 5/8 3/8 2 1/2 32166 32875
SD 1 3/8 2 1/2 32045 30739 30361 30512
XL 1 3/8 4 30207 30082
XL 1 1/8 3/8 3 32579 30081
3/8
XL 1 1/2 3/8 4 30221 30083
XL 1 1/2 3/8 6 32559 30085
XL 2 3/8 4 32276 30084
XL 3 3/8 6 32277 30086
25/64 SD 1 7/16 2 3/4 32934 30740 30362 30513
13/32 SD 1 7/16 2 3/4 32904 30741 30363 30514
27/64 SD 1 7/16 2 3/4 32935 30742 30364 30515
STB 3/4 7/16 2 3/4 32167 32876
SD 1 7/16 2 3/4 32046 30743 30365 30516
XL 1 7/16 4 30208 30087
7/16
XL 1 1/2 7/16 6 32560 30089
XL 2 7/16 4 32278 30088
XL 3 7/16 6 32279 30090
29/64 SD 1 1/2 3 32936 30744 30366 30517
15/32 SD 1 1/2 3 32914 30745 30367 30518
31/64 SD 1 1/2 3 32937 30746 30368 30519
STB 3/4 1/2 3 32168 32877
SD 1 1/2 3 32047 30747 30369 30520
XL 1 1/2 4 30209 30092
XL 1 1/4 1/2 3 30241 30091
1/2
XL 1 1/2 1/2 4 32583 30093
XL 1 1/2 1/2 6 32561 30095
XL 2 1/2 4 32280 30094
XL 3 1/2 6 32281 30096
SD 1 1/4 9/16 3 1/2 32048 30748 30370 30521
9/16
XL 3 9/16 6 32251
STB 1 9/16 3 1/2 32169 32878
SD 1 1/2 9/16 3 1/2 32049 30749 30371 30522
5/8 XL 1 1/2 9/16 6 30228 30098
XL 2 1/2 9/16 5 32282 30097
XL 3 9/16 6 32283 30099
11/16 SD 1 1/2 3/4 4 32050 30750 30372 30523
STB 1 3/4 4 32170 32879
3/4 SD 1 1/2 3/4 4 32051 30751 30373 30524
XL 1 1/2 3/4 6 30230 30101

Visit fullertontool.com for the most up to date information. 109
