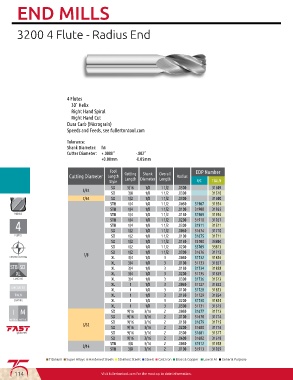

Page 116 - Fullerton Tool Catalog

END MILLS

3200 4 Flute - Radius End

4 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Radius
Length Diameter Length
Style UC TIALN
SD 3/16 1/8 1 1/2 .0300 31509
3/32
SD 3/8 1/8 1 1/2 .0300 31510
7/64 SD 1/2 1/8 1 1/2 .0300 31500
STB 1/4 1/8 1 1/2 .0050 31907 31954
STB 1/4 1/8 1 1/2 .0100 31908 31955
STB 1/4 1/8 1 1/2 .0150 31909 31956
STB 1/4 1/8 1 1/2 .0200 31910 31957
STB 1/4 1/8 1 1/2 .0300 31911 31511
SD 1/2 1/8 1 1/2 .0050 31674 31710
SD 1/2 1/8 1 1/2 .0100 31675 31711
SD 1/2 1/8 1 1/2 .0150 33700 33804
SD 1/2 1/8 1 1/2 .0200 33709 33813
SD 1/2 1/8 1 1/2 .0300 31676 31712
1/8
XL 3/4 1/8 3 .0050 31732 31856
XL 3/4 1/8 3 .0100 31733 31857
XL 3/4 1/8 3 .0150 31734 31858
XL 3/4 1/8 3 .0200 31735 31859
XL 3/4 1/8 3 .0300 31736 31513
XL 1 1/8 3 .0050 31727 31852
UNCOATED
XL 1 1/8 3 .0100 31728 31853
TIALN XL 1 1/8 3 .0150 31729 31854
XL 1 1/8 3 .0200 31730 31855
XL 1 1/8 3 .0300 31731 31515
I M SD 9/16 3/16 2 .0050 31677 31713
SD 9/16 3/16 2 .0100 31678 31714
IMPERIAL METRIC SD 9/16 3/16 2 .0150 31679 31715
5/32
SD 9/16 3/16 2 .0200 31680 31716
SD 9/16 3/16 2 .0300 31681 31517
SD 9/16 3/16 2 .0600 31682 31518
STB 3/8 3/16 2 .0050 31912 31958
3/16
STB 3/8 3/16 2 .0100 31913 31959
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
