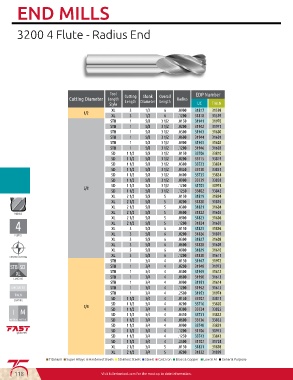

Page 120 - Fullerton Tool Catalog

3200 4 Flute - Radius End

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length Radius
Style UC TIALN
XL 3 1/2 6 .0900 31817 31598
1/2
XL 3 1/2 6 .1200 31818 31599
STB 1 5/8 3 1/2 .0150 31941 31970
STB 1 5/8 3 1/2 .0200 31942 31971
STB 1 5/8 3 1/2 .0300 31943 31600
STB 1 5/8 3 1/2 .0600 31944 31601
STB 1 5/8 3 1/2 .0900 31945 31602
STB 1 5/8 3 1/2 .1200 31946 31603
SD 1 1/2 5/8 3 1/2 .0150 33706 33810
SD 1 1/2 5/8 3 1/2 .0200 33715 33819
SD 1 1/2 5/8 3 1/2 .0300 33723 33824
SD 1 1/2 5/8 3 1/2 .0450 33730 33831
SD 1 1/2 5/8 3 1/2 .0600 33735 33834
SD 1 1/2 5/8 3 1/2 .0900 33739 33838
SD 1 1/2 5/8 3 1/2 .1200 31705 30974
5/8
SD 1 1/2 5/8 3 1/2 .1250 33802 33842
XL 2 1/2 5/8 5 .0150 31819 31894
XL 2 1/2 5/8 5 .0200 31820 31895
XL 2 1/2 5/8 5 .0300 31821 31604
XL 2 1/2 5/8 5 .0600 31822 31605
XL 2 1/2 5/8 5 .0900 31823 31606
XL 2 1/2 5/8 5 .1200 31824 31607
XL 3 5/8 6 .0150 31825 31896
XL 3 5/8 6 .0200 31826 31897
XL 3 5/8 6 .0300 31827 31608
XL 3 5/8 6 .0600 31828 31609
XL 3 5/8 6 .0900 31829 31610
XL 3 5/8 6 .1200 31830 31611
STB 1 3/4 4 .0150 31947 31972
STB 1 3/4 4 .0200 31948 31973
STB 1 3/4 4 .0300 31949 31612
STB 1 3/4 4 .0600 31950 31613
STB 1 3/4 4 .0900 31951 31614
UNCOATED STB 1 3/4 4 .1200 31952 31615
STB 1 3/4 4 .2500 31953 31974
TIALN
SD 1 1/2 3/4 4 .0150 33707 33811
SD 1 1/2 3/4 4 .0200 33716 33820
3/4
I M SD 1 1/2 3/4 4 4 .0300 33724 33825
.0450
1 1/2
3/4
SD
33731
33832
IMPERIAL METRIC SD 1 1/2 3/4 4 .0600 33736 33835
SD 1 1/2 3/4 4 .0900 33740 33839
SD 1 1/2 3/4 4 .1200 31706 30975
SD 1 1/2 3/4 4 .1250 33743 33843
SD 1 1/2 3/4 4 .2500 31707 31724
XL 2 1/2 3/4 5 .0150 31831 31898
XL 2 1/2 3/4 5 .0200 31832 31899
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
