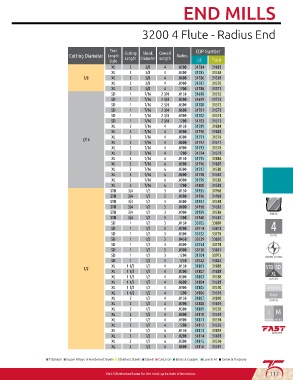

Page 119 - Fullerton Tool Catalog

END MILLS

3200 4 Flute - Radius End

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length Radius
Style UC TIALN
XL 2 3/8 4 .0200 31784 31883
XL 2 3/8 4 .0300 31785 31568
3/8 XL 2 3/8 4 .0600 31786 31569
XL 2 3/8 4 .0900 31787 31570
XL 2 3/8 4 .1200 31788 31571
SD 1 7/16 2 3/4 .0150 31698 31722
SD 1 7/16 2 3/4 .0200 31699 31723
SD 1 7/16 2 3/4 .0300 31700 31572
SD 1 7/16 2 3/4 .0600 31701 31573
SD 1 7/16 2 3/4 .0900 31702 31574
SD 1 7/16 2 3/4 .1200 31703 31575
XL 2 7/16 4 .0150 31789 31884
XL 2 7/16 4 .0200 31790 31885
XL 2 7/16 4 .0300 31791 31576
7/16
XL 2 7/16 4 .0600 31792 31577
XL 2 7/16 4 .0900 31793 31578
XL 2 7/16 4 .1200 31794 31579
XL 3 7/16 6 .0150 31795 31886
XL 3 7/16 6 .0200 31796 31887
XL 3 7/16 6 .0300 31797 31580
XL 3 7/16 6 .0600 31798 31581
XL 3 7/16 6 .0900 31799 31582
XL 3 7/16 6 .1200 31800 31583
STB 3/4 1/2 3 .0150 31935 31968
STB 3/4 1/2 3 .0200 31936 31969
STB 3/4 1/2 3 .0300 31937 31584
STB 3/4 1/2 3 .0600 31938 31585
STB 3/4 1/2 3 .0900 31939 31586
STB 3/4 1/2 3 .1200 31940 31587
SD 1 1/2 3 .0150 33705 33809
SD 1 1/2 3 .0200 33714 33818
SD 1 1/2 3 .0300 33722 33793
SD 1 1/2 3 .0450 33729 33830
SD 1 1/2 3 .0600 33734 33794
SD 1 1/2 3 .0900 33738 33837
SD 1 1/2 3 .1200 31704 30973
SD 1 1/2 3 .1250 33742 33841
XL 1 1/2 1/2 4 .0150 31801 31888
1/2
XL 1 1/2 1/2 4 .0200 31802 31889
XL 1 1/2 1/2 4 .0300 31803 31588
XL 1 1/2 1/2 4 .0600 31804 31589
XL 1 1/2 1/2 4 .0900 31805 31590 UNCOATED
XL 1 1/2 1/2 4 .1200 31806 31591 TIALN
XL 2 1/2 4 .0150 31807 31890
XL 2 1/2 4 .0200 31808 31891
XL 2 1/2 4 .0300 31809 31592
XL 2 1/2 4 .0600 31810 31593 I M
XL 2 1/2 4 .0900 31811 31594 IMPERIAL METRIC
XL 2 1/2 4 .1200 31812 31595
XL 3 1/2 6 .0150 31813 31892
XL 3 1/2 6 .0200 31814 31893
XL 3 1/2 6 .0300 31815 31596
XL 3 1/2 6 .0600 31816 31597

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
