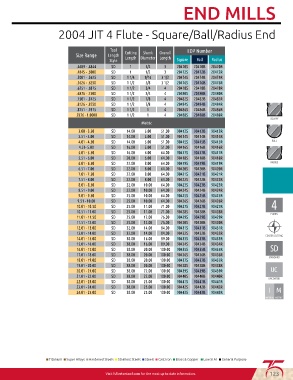

Page 125 - Fullerton Tool Catalog

Tool Cutting Shank Overall EDP Number
Size Range Length Length Diameter Length
Style Square Ball Radius
.4689 - .4844 SD 1 1/2 3 20470S 20470B 20470R
.4845 - .5000 SD 1 1/2 3 20472S 20472B 20472R
.5001 - .5625 SD 1 1/4 9/16 3 1/2 20474S 20474B 20474R
.5626 - .6250 SD 1 1/2 5/8 3 1/2 20476S 20476B 20476R
.6251 - .6875 SD 1 1/2 3/4 4 20478S 20478B 20478R
.6876 - .7500 SD 1 1/2 3/4 4 20480S 20480B 20480R
.7501 - .8125 SD 1 1/2 7/8 4 20482S 20482B 20482R
.8126 - .8750 SD 1 1/2 7/8 4 20484S 20484B 20484R
.8751 - .9375 SD 1 1/2 1 4 20486S 20486B 20486R
.9376 - 1.0000 SD 1 1/2 1 4 20488S 20488B 20488R
Metric

3.00 - 3.50 SD 14.00 5.00 51.00 90413S 90413B 90413R
3.51 - 4.00 SD 14.00 5.00 51.00 90414S 90414B 90414R
4.01 - 4.50 SD 14.00 5.00 51.00 90415S 90415B 90415R
4.51- 5.00 SD 16.00 5.00 51.00 90416S 90416B 90416R
5.01 - 5.50 SD 16.00 6.00 64.00 90417S 90417B 90417R
5.51 - 6.00 SD 20.00 6.00 64.00 90418S 90418B 90418R
6.01 - 6.50 SD 22.00 8.00 64.00 90419S 90419B 90419R
6.51 - 7.00 SD 22.00 8.00 64.00 90420S 90420B 90420R
7.01 - 7.50 SD 22.00 8.00 64.00 90421S 90421B 90421R
7.51 - 8.00 SD 22.00 8.00 64.00 90422S 90422B 90422R
8.01 - 8.50 SD 22.00 10.00 64.00 90423S 90423B 90423R
8.51 - 9.00 SD 22.00 10.00 64.00 90424S 90424B 90424R
9.01 - 9.50 SD 25.00 10.00 64.00 90425S 90425B 90425R
9.51 - 10.00 SD 25.00 10.00 64.00 90426S 90426B 90426R
10.01 - 10.50 SD 25.00 11.00 71.00 90427S 90427B 90427R
10.51 - 11.00 SD 25.00 11.00 71.00 90428S 90428B 90428R
11.01 - 11.50 SD 25.00 12.00 76.00 90429S 90429B 90429R
11.51 - 12.00 SD 25.00 12.00 76.00 90430S 90430B 90430R
12.01 - 13.00 SD 32.00 14.00 84.00 90431S 90431B 90431R
13.01 - 14.00 SD 32.00 14.00 84.00 90432S 90432B 90432R
14.01 - 15.00 SD 38.00 16.00 89.00 90433S 90433B 90433R
15.01 - 16.00 SD 38.00 16.00 89.00 90434S 90434B 90434R
16.01 - 17.00 SD 38.00 20.00 100.00 90435S 90435B 90435R
17.01 - 18.00 SD 38.00 20.00 100.00 90436S 90436B 90436R
18.01 - 19.00 SD 38.00 20.00 100.00 90437S 90437B 90437R
19.01 - 20.00 SD 38.00 20.00 100.00 90438S 90438B 90438R
20.01 - 21.00 SD 38.00 22.00 100.00 90439S 90439B 90439R
21.01 - 22.00 SD 38.00 22.00 100.00 90440S 90440B 90440R
22.01 - 23.00 SD 38.00 25.00 100.00 90441S 90441B 90441R
23.01 - 24.00 SD 38.00 25.00 100.00 90442S 90442B 90442R
24.01 - 25.00 SD 38.00 25.00 100.00 90443S 90443B 90443R

Visit fullertontool.com for the most up to date information. 123
