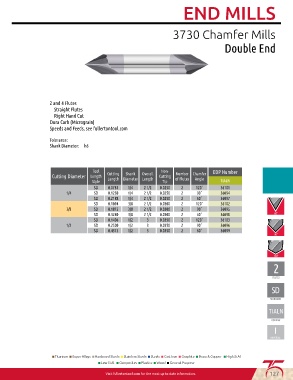

Page 129 - Fullerton Tool Catalog

END MILLS

3730 Chamfer Mills

Double End

2 and 4 Flutes
Straight Flutes
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6

Tool Non- EDP Number
Number Chamfer
Cutting Diameter Length Cutting Shank Overall Cutting of Flutes Angle
Length Diameter Length
Style Tip TIALN
SD 0.0781 1/4 2 1/2 0.0250 2 120˚ 36101
1/4 SD 0.1250 1/4 2 1/2 0.0250 2 90˚ 36094
SD 0.2188 1/4 2 1/2 0.0250 2 60˚ 36097
SD 0.1094 3/8 2 1/2 0.0300 2 120˚ 36102
3/8 SD 0.1875 3/8 2 1/2 0.0300 2 90˚ 36095
SD 0.3280 3/8 2 1/2 0.0300 2 60˚ 36098
SD 0.1406 1/2 3 0.0350 2 120˚ 36103
1/2 SD 0.2500 1/2 3 0.0350 2 90˚ 36096
SD 0.4375 1/2 3 0.0350 2 60˚ 36099

I

IMPERIAL

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Graphite ■ Brass & Copper ■ High Si Al
■ Low Si Al ■ Composites ■ Plastics ■ Wood ■ General Purpose
