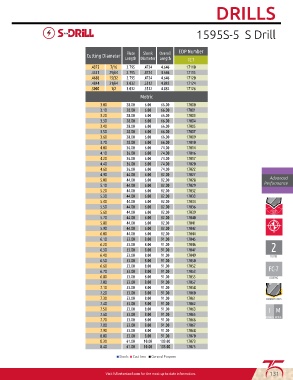

Page 133 - Fullerton Tool Catalog

DRILLS

1595S-5 S Drill

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length FC 7
.4375 7/16 2.795 .4724 4.646 17110
.4531 29/64 2.795 .4724 4.646 17115
.4688 15/32 2.795 .4724 4.646 17120
.4844 31/64 3.032 .5512 4.882 17124
.5000 1/2 3.032 .5512 4.882 17126
Metric

3.00 28.00 6.00 66.00 17000
3.10 28.00 6.00 66.00 17001
3.20 28.00 6.00 66.00 17003
3.30 28.00 6.00 66.00 17004
3.40 28.00 6.00 66.00 17005
3.50 28.00 6.00 66.00 17007
3.60 28.00 6.00 66.00 17009
3.70 28.00 6.00 66.00 17010
4.00 36.00 6.00 74.00 17014
4.10 36.00 6.00 74.00 17016
4.20 36.00 6.00 74.00 17017
4.40 36.00 6.00 74.00 17020
4.60 36.00 6.00 74.00 17022
4.90 44.00 6.00 82.00 17027
5.00 44.00 6.00 82.00 17028 Advanced
5.10 44.00 6.00 82.00 17029 Performance
5.20 44.00 6.00 82.00 17032
5.30 44.00 6.00 82.00 17033
5.40 44.00 6.00 82.00 17034
5.50 44.00 6.00 82.00 17036
5.60 44.00 6.00 82.00 17039
5.70 44.00 6.00 82.00 17040
5.80 44.00 6.00 82.00 17041
5.90 44.00 6.00 82.00 17042
6.00 44.00 6.00 82.00 17044
6.10 53.00 8.00 91.00 17045
6.20 53.00 8.00 91.00 17046
6.30 53.00 8.00 91.00 17047
6.40 53.00 8.00 91.00 17049
6.50 53.00 8.00 91.00 17050
6.60 53.00 8.00 91.00 17052
6.70 53.00 8.00 91.00 17053
6.80 53.00 8.00 91.00 17055
7.00 53.00 8.00 91.00 17057
7.10 53.00 8.00 91.00 17058
7.20 53.00 8.00 91.00 17060
7.30 53.00 8.00 91.00 17061
7.40 53.00 8.00 91.00 17062
7.50 53.00 8.00 91.00 17063 I M
7.60 53.00 8.00 91.00 17065
7.70 53.00 8.00 91.00 17066 IMPERIAL METRIC
7.80 53.00 8.00 91.00 17067
7.90 53.00 8.00 91.00 17068
8.00 53.00 8.00 91.00 17070
8.30 61.00 10.00 103.00 17073
8.40 61.00 10.00 103.00 17075
■ Steels ■ Cast Iron ■ General Purpose
