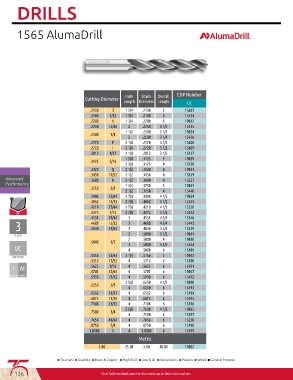

Page 138 - Fullerton Tool Catalog

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC
.2130 3 1 3/4 .2130 3 15607
.2188 7/32 1 3/4 .2188 3 15434
.2280 1 1 3/4 .2280 3 19022
.2344 15/64 2 .2344 3 1/4 15435
1 1/4 .2500 2 1/2 19024
.2500 1/4
2 .2500 3 1/4 15436
.2570 F 2 1/8 .2570 3 1/2 15608
.2720 I 2 1/8 .2720 3 1/2 15609
.2812 9/32 2 1/8 .2812 3 1/2 15437
1 5/8 .3125 3 19029
.3125 5/16
2 3/8 .3125 4 15438
.3320 Q 2 1/2 .3320 4 19031
.3438 11/32 2 1/2 .3438 4 15439
.3680 U 2 1/2 .3680 4 15227
1 3/4 .3750 3 19033
.3750 3/8
2 1/2 .3750 4 15440
.3906 25/64 2 7/8 .3906 4 1/2 19034
.4062 13/32 2 7/8 .4062 4 1/2 15441
.4219 27/64 2 7/8 .4219 4 1/2 15228
.4375 7/16 2 7/8 .4375 4 1/2 15442
.4531 29/64 3 .4531 4 3/4 15446
.4688 15/32 3 .4688 4 3/4 15443
.4844 31/64 3 .4844 4 3/4 15229
2 .5000 3 1/2 19041
2 .5000 4 19058
.5000 1/2
3 .5000 4 3/4 15444
4 .5000 6 15489
.5156 33/64 3 1/4 .5156 5 19043
.5312 17/32 4 .5312 6 15490
.5625 9/16 4 .5625 6 15491
.5781 37/64 4 .5781 6 19047
.5938 19/32 4 .5938 6 15492
2 5/8 .6250 4 1/2 19050
.6250 5/8
4 .6250 6 15493
.6562 21/32 4 .6562 6 15494
.6875 11/16 4 .6875 6 15495
.7188 23/32 4 .7188 6 15496
2 5/8 .7500 4 1/2 19055
.7500 3/4
4 .7500 6 15497
.7656 49/64 4 .7656 6 15230
.8750 7/8 4 .8750 6 15498
1.0000 1 4 1.0000 6 15499
Metric

2.00 25.00 3.00 50.00 19002

136
