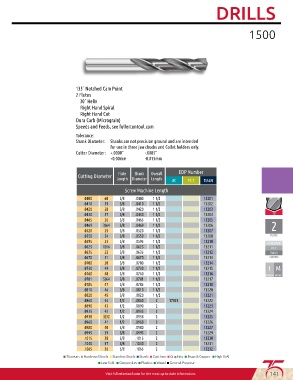

Page 143 - Fullerton Tool Catalog

135˚ Notched Cam Point
2 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com
Tolerance:
Shank Diameter: Shanks are not precision ground and are intended
for use in three jaw chucks and Collet holders only.
Cutter Diameter: +.0000” -.0005”
+0.00mm -0.013mm

Flute Shank Overall EDP Number
Cutting Diameter
Length Diameter Length UC FC 7 TIALN

Screw Machine Length
.0400 60 3/8 .0400 1 1/2 13201
.0410 59 3/8 .0410 1 1/2 13202
.0420 58 3/8 .0420 1 1/2 13203
.0430 57 3/8 .0430 1 1/2 13204
.0465 56 3/8 .0465 1 1/2 13205
.0469 3/64 3/8 .0469 1 1/2 13206
.0520 55 3/8 .0520 1 1/2 13207
.0550 54 3/8 .0550 1 1/2 13208
.0595 53 3/8 .0595 1 1/2 13210
.0625 1/16 3/8 .0625 1 1/2 13211
.0635 52 3/8 .0635 1 1/2 13212
.0670 51 3/8 .0670 1 1/2 13213
.0700 50 3/8 .0700 1 1/2 13214
.0730 49 3/8 .0730 1 1/2 13215
.0760 48 3/8 .0760 1 1/2 13216
.0781 5/64 3/8 .0781 1 1/2 13217
.0785 47 3/8 .0785 1 1/2 13218
.0810 46 3/8 .0810 1 1/2 13220
.0820 45 3/8 .0820 1 1/2 13221
.0860 44 1/2 .0860 2 17823 13222
.0890 43 1/2 .0890 2 13223
.0935 42 1/2 .0935 2 13224
.0938 3/32 1/2 .0938 2 13225
.0960 41 1/2 .0960 2 13226
.0980 40 5/8 .0980 2 13227
.0995 39 5/8 .0995 2 13229
.1015 38 5/8 .1015 2 13230
.1040 37 5/8 .1040 2 13231
.1065 36 5/8 .1065 2 13232
