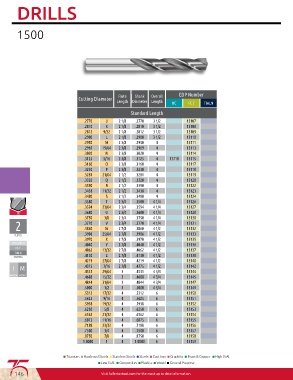

Page 148 - Fullerton Tool Catalog

DRILLS

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC FC 7 TIALN

Standard Length
.2770 J 2 1/8 .2770 3 1/2 13107
.2810 K 2 1/8 .2810 3 1/2 13108
.2812 9/32 2 1/8 .2812 3 1/2 13109
.2900 L 2 1/8 .2900 3 1/2 13110
.2950 M 2 3/8 .2950 4 13111
.2969 19/64 2 3/8 .2969 4 13113
.3020 N 2 3/8 .3020 4 13114
.3125 5/16 2 3/8 .3125 4 17718 13115
.3160 O 2 3/8 .3160 4 13117
.3230 P 2 3/8 .3230 4 13118
.3281 21/64 2 1/2 .3281 4 13119
.3320 Q 2 1/2 .3320 4 13120
.3390 R 2 1/2 .3390 4 13122
.3438 11/32 2 1/2 .3438 4 13123
.3480 S 2 1/2 .3480 4 13124
.3580 T 2 3/4 .3580 4 1/4 13126
.3594 23/64 2 3/4 .3594 4 1/4 13127
.3680 U 2 3/4 .3680 4 1/4 13128
.3750 3/8 2 3/4 .3750 4 1/4 13130
.3770 V 2 3/4 .3770 4 1/4 13131
.3860 W 2 7/8 .3860 4 1/2 13132
.3906 25/64 2 7/8 .3906 4 1/2 13133
.3970 X 2 7/8 .3970 4 1/2 13135
.4040 Y 2 7/8 .4040 4 1/2 13136
.4062 13/32 2 7/8 .4062 4 1/2 13137
.4130 Z 2 7/8 .4130 4 1/2 13138
.4219 27/64 2 7/8 .4219 4 1/2 13140
.4375 7/16 2 7/8 .4375 4 1/2 13142
.4531 29/64 3 .4531 4 3/4 13144
.4688 15/32 3 .4688 4 3/4 13145
.4844 31/64 3 .4844 4 3/4 13147
.5000 1/2 3 .5000 4 3/4 13149
.5312 17/32 4 .5312 6 13150
.5625 9/16 4 .5625 6 13151
.5938 19/32 4 .5938 6 13152
.6250 5/8 4 .6250 6 13153
.6562 21/32 4 .6562 6 13154
.6875 11/16 4 .6875 6 13155
.7188 23/32 4 .7188 6 13156
.7500 3/4 4 .7500 6 13157
.8750 7/8 4 .8750 6 13158
1.0000 1 4 1.0000 6 13159
