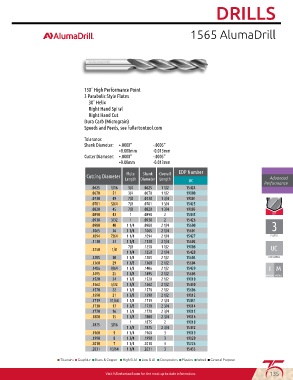

Page 137 - Fullerton Tool Catalog

DRILLS

1565 AlumaDrill

130˚ High Performance Point
3 Parabolic Style Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: +.0000” -.0005”
+0.000mm -0.013mm
Cutter Diameter: +.0000” -.0005”
+0.00mm -0.013mm

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC Advanced
Performance
.0625 1/16 3/4 .0625 1 1/2 15424
.0670 51 3/4 .0670 1 1/2 19000
.0730 49 7/8 .0730 1 3/4 19001
.0781 5/64 7/8 .0781 1 3/4 15425
.0820 45 7/8 .0820 1 3/4 19003
.0890 43 1 .0890 2 15445
.0938 3/32 1 .0938 2 15426
.0980 40 1 1/4 .0980 2 1/4 15600
.1065 36 1 1/4 .1065 2 1/4 15601
.1094 7/64 1 1/4 .1094 2 1/4 15427
.1130 33 1 1/4 .1130 2 1/4 15602
7/8 .1250 1 1/2 19008
.1250 1/8
1 1/4 .1250 2 1/4 15428
.1285 30 1 3/8 .1285 2 1/2 15603 UNCOATED
.1360 29 1 3/8 .1360 2 1/2 15604
.1406 9/64 1 3/8 .1406 2 1/2 15429 I M
.1495 25 1 3/8 .1495 2 1/2 15605 IMPERIAL METRIC
.1520 24 1 3/8 .1520 2 1/2 19010
.1562 5/32 1 3/8 .1562 2 1/2 15430
.1570 22 1 3/8 .1570 2 1/2 15606
.1590 21 1 3/8 .1590 2 1/2 19012
.1719 11/64 1 5/8 .1719 2 3/4 15431
.1730 17 1 5/8 .1730 2 3/4 19014
.1770 16 1 5/8 .1770 2 3/4 19015
.1800 15 1 5/8 .1800 2 3/4 19016
1 .1875 2 19018
.1875 3/16
1 5/8 .1875 2 3/4 15432
.1960 9 1 3/4 .1960 3 19019
.1990 8 1 3/4 .1990 3 19020
.2010 7 1 3/4 .2010 3 15226
.2031 13/64 1 3/4 .2031 3 15433

■ Titanium ■ Graphite ■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ Wood ■ General Purpose

Visit fullertontool.com for the most up to date information. 135
