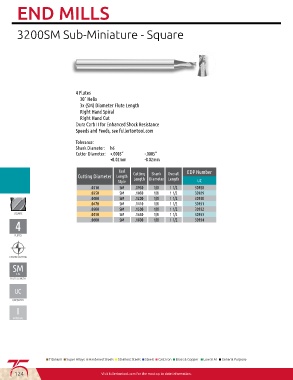

Page 126 - Fullerton Tool Catalog

END MILLS

3200SM Sub-Miniature - Square

4 Flutes
30˚ Helix
3x (SM) Diameter Flute Length
Right Hand Spiral
Right Hand Cut
Dura Carb II for Enhanced Shock Resistance
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0005” -.0005”
+0.02mm -0.02mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall
Length Diameter Length
Style UC
.0310 SM .0930 1/8 1 1/2 30928
.0350 SM .1050 1/8 1 1/2 30929
.0400 SM .1200 1/8 1 1/2 30930
.0470 SM .1410 1/8 1 1/2 30931
.0500 SM .1500 1/8 1 1/2 30932
.0550 SM .1650 1/8 1 1/2 30933
.0600 SM .1800 1/8 1 1/2 30934

SM

3.0x
FLUTE LENGTH

UNCOATED
I
IMPERIAL

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
