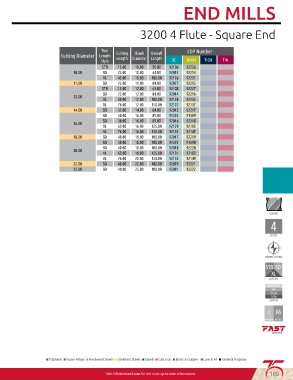

Page 107 - Fullerton Tool Catalog

END MILLS

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC TIALN TICN TIN
STB 15.00 10.00 50.00 92106 92226
10.00 SD 25.00 10.00 64.00 92013 92214
XL 45.00 10.00 100.00 92126 92231
11.00 SD 25.00 11.00 84.00 92077 92215
STB 15.00 12.00 63.00 92108 92227
SD 25.00 12.00 84.00 92014 92216
12.00
XL 50.00 12.00 100.00 92128 92232
XL 76.00 12.00 150.00 92127 92137
14.00 SD 32.00 14.00 84.00 92015 92217
SD 30.00 16.00 89.00 91322 91389
SD 38.00 16.00 89.00 92016 92218
16.00
XL 63.00 16.00 125.00 92129 92182
XL 76.00 16.00 150.00 92133 92147
18.00 SD 40.00 18.00 100.00 92017 92219
SD 30.00 18.00 100.00 91323 91390
SD 40.00 18.00 100.00 92018 92220
20.00
XL 63.00 18.00 125.00 92131 92183
XL 76.00 20.00 150.00 92135 92149
22.00 SD 40.00 22.00 100.00 92079 92221
25.00 SD 40.00 25.00 100.00 92081 92222

UNCOATED
TIN
TIALN
TICN

I M

IMPERIAL METRIC

■

Visit fullertontool.com for the most up to date information. 105
