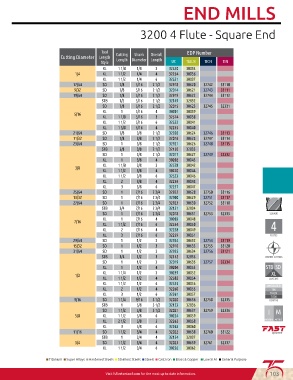

Page 105 - Fullerton Tool Catalog
P. 105
Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC TIALN TICN TIN
XL 1 1/8 1/4 3 32550 30034
1/4 XL 1 1/2 1/4 4 32254 30036
XL 1 1/2 1/4 6 32551 30037
17/64 SD 7/8 5/16 2 1/2 32918 30620 32742 33110
9/32 SD 7/8 5/16 2 1/2 32014 30621 32743 33111
19/64 SD 7/8 5/16 2 1/2 32919 30622 32744 33112
STB 1/2 5/16 2 1/2 32149 32832
SD 7/8 5/16 2 1/2 32015 30623 32745 32331
XL 1 5/16 4 30201 30039
5/16
XL 1 1/8 5/16 3 32574 30038
XL 1 1/2 5/16 6 32552 30041
XL 1 5/8 5/16 4 32255 30040
21/64 SD 7/8 3/8 2 1/2 32920 30624 32746 33113
11/32 SD 7/8 3/8 2 1/2 32016 30625 32747 33114
23/64 SD 1 3/8 2 1/2 32921 30626 32748 33115
STB 5/8 3/8 2 1/2 32150 32833
SD 1 3/8 2 1/2 32017 30627 32749 32332
XL 1 3/8 4 30202 30043
XL 1 1/8 3/8 3 32578 30042
3/8
XL 1 1/2 3/8 4 30220 30044
XL 1 1/2 3/8 6 32553 30046
XL 2 3/8 4 32256 30045
XL 3 3/8 6 32257 30047
25/64 SD 1 7/16 2 3/4 32922 30628 32750 33116
13/32 SD 1 7/16 2 3/4 32900 30629 32751 33117
27/64 SD 1 7/16 2 3/4 32923 30630 32752 33118
STB 3/4 7/16 2 3/4 32151 32834
SD 1 7/16 2 3/4 32018 30631 32753 32333
XL 1 7/16 4 30203 30048
7/16
XL 1 1/2 7/16 6 32554 30050
XL 2 7/16 4 32258 30049
XL 3 7/16 6 32259 30051
29/64 SD 1 1/2 3 32924 30632 32754 33119
15/32 SD 1 1/2 3 32910 30633 32755 33120
31/64 SD 1 1/2 3 32925 30634 32756 33121
STB 3/4 1/2 3 32152 32835
SD 1 1/2 3 32019 30635 32757 32334
XL 1 1/2 4 30204 30053
XL 1 1/4 1/2 3 30239 30052
1/2
XL 1 1/2 1/2 4 32582 30054
XL 1 1/2 1/2 6 32555 30056
XL 2 1/2 4 32260 30055
XL 3 1/2 6 32261 30057
9/16 SD 1 1/4 9/16 3 1/2 32020 30636 32758 32335
STB 1 5/8 3 1/2 32153 32836
SD 1 1/2 5/8 3 1/2 32021 30637 32759 32336
5/8 XL 1 1/2 5/8 6 30224 30059
XL 2 1/2 5/8 5 32262 30058
XL 3 5/8 6 32263 30060
11/16 SD 1 1/2 3/4 4 32022 30638 32760 33122
STB 1 3/4 4 32154 32837
3/4 SD 1 1/2 3/4 4 32023 30639 32761 32337
XL 1 1/2 3/4 6 30226 30062
Visit fullertontool.com for the most up to date information. 103
