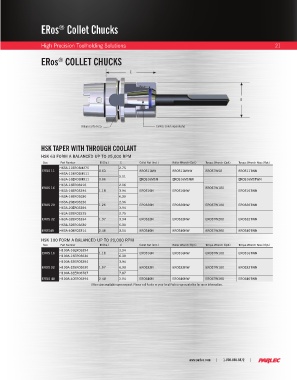

Page 23 - Parlec Catalog

ERos Collet Chucks
®

High Precision Toolholding Solutions 21

ERos COLLET CHUCKS
®

C

B

Balanced to G 2.5 Collets (sold separately)

HSK TAPER WITH THROUGH COOLANT

HSK 63 FORM A BALANCED UP TO 25,000 RPM
Size Part Number B (Dia.) C Collet Nut (Incl.) Roller Wrench (Opt.) Torque Wrench (Opt.) Torque Wrench Nose (Opt.)
H63A-11EROSM275 2.75
EROS 11 0.63 EROS11MN EROS11MNW EROSTW50 EROS11TWN
H63A-11EROSM511
5.11
H63A-16EROSM511 0.86 EROS16MSN EROS16MSNW EROS16MSTWN
H63A-16EROS216 2.16
EROS 16 EROSTW100
H63A-16EROS394 1.18 3.94 EROS16N EROS16NW EROS16TWN
H63A-16EROS630 6.30
H63A-20EROS236 2.36
EROS 20 1.26 EROS20N EROS20NW EROSTW100 EROS20TWN
H63A-20EROS394 3.94
H63A-32EROS275 2.75
EROS 32 H63A-32EROS394 1.97 3.94 EROS32N EROS32NW EROSTW200 EROS32TWN
H63A-32EROS630 6.30
EROS40 H63A-40EROS314 2.48 3.14 EROS40N EROS40NW EROSTW300 EROS40TWN

HSK 100 FORM A BALANCED UP TO 20,000 RPM
Size Part Number B (Dia.) C Collet Nut (Incl.) Roller Wrench (Opt.) Torque Wrench (Opt.) Torque Wrench Nose (Opt.)
H100A-16EROS394 3.94
EROS 16 1.18 EROS16N EROS16NW EROSTW100 EROS16TWN
H100A-16EROS630 6.30
H100A-32EROS394 3.94
EROS 32 H100A-32EROS630 1.97 6.30 EROS32N EROS32NW EROSTW100 EROS32TWN
H100A-32EROS787 7.87
EROS 40 H100A-40EROS394 2.48 3.94 EROS40N EROS40NW EROSTW300 EROS40TWN
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
