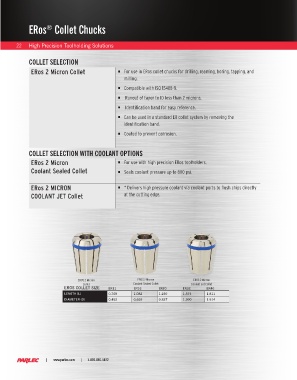

Page 24 - Parlec Catalog

ERos Collet Chucks
®

22 High Precision Toolholding Solutions

COLLET SELECTION
ERos 2 Micron Collet ƒ For use in ERos collet chucks for drilling, reaming, boring, tapping, and
milling.

ƒ Compatible with ISO 15488-B.

ƒ Runout of taper to ID less than 2 microns.
ƒ Identification band for easy reference.

ƒ Can be used in a standard ER collet system by removing the
identification band.

ƒ Coated to prevent corrosion.

COLLET SELECTION WITH COOLANT OPTIONS
ERos 2 Micron ƒ For use with high precision ERos toolholders.
Coolant Sealed Collet ƒ Seals coolant pressure up to 800 psi.

ERos 2 MICRON ƒ * Delivers high pressure coolant via coolant ports to flush chips directly
COOLANT JET Collet at the cutting edge.

EROS 2 Micron EROS 2 Micron EROS 2 Micron
Collet Coolant Sealed Collet Coolant Jet Collet
EROS COLLET SIZE ER11 ER16 ER20 ER32 ER40
LENGTH (L) 0.708 1.082 1.240 1.574 1.811
DIAMETER (D) 0.452 0.669 0.827 1.300 1.614
