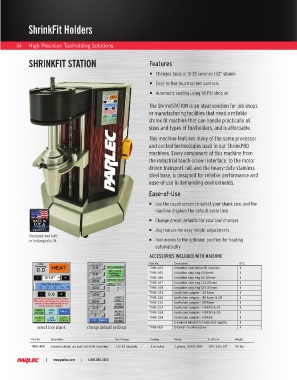

Page 36 - Parlec Catalog

ShrinkFit Holders

34 High Precision Toolholding Solutions

SHRINKFIT STATION Features

ƒ Changes tools in 15–25 seconds (1/2" shank)

ƒ Easy-to-Use touch screen controls
ƒ Automatic cooling using 90 PSI shop air

The ShrinkSTATION is an ideal solution for job shops
or manufacturing facilities that need a reliable
shrink fit machine that can handle practically all
sizes and types of toolholders, and is affordable.

This machine features many of the same processor
and control technologies used in our ShrinkPRO
machines. Every component of this machine from
the industrial touch-screen interface, to the motor
driven transport rail, and the heavy-duty stainless
steel base, is designed for reliable performance and
ease-of-use in demanding environments.

Ease-of-Use

ƒ Use the touch screen to select your shank size, and the
machine displays the default cycle time

ƒ Change preset defaults for your tool changes

ƒ Jog feature for easy height adjustments
Designed and built
in Indianapolis, IN. ƒ Tool moves to the optimum position for heating
automatically

ACCESSORIES INCLUDED WITH MACHINE
Part No. Description QTY.
TIHS-400 induction heat shrink fit machine 1
TIHS-165 induction stop ring (3-5mm) 1
TIHS-166 induction stop ring (6-12mm) 1
TIHS-167 induction stop ring (14-20mm) 1
TIHS-168 induction stop ring (25-32mm) 1
TIHS-151 toolholder adapter - 30 taper 1
TIHS-152 toolholder adapter - 40 taper & C6 1
TIHS-153 toolholder adapter - 50 taper 1
TIHS-157 toolholder adapter - HSK40 & C4 1
TIHS-158 toolholder adapter - HSK50 & C5 1
TIHS-159 toolholder adapter - HSK63 1
transport adapter for extended lengths 1
select tool shank change default settings TIHS-GLV thermal insulated glove 1

Part No. Description Tool Change Cooling Rating L x D x H Weight
TIHS-400 induction heat, air cool shrink fit machine 15–25 seconds 2 minutes 1 phase, 220V, 20A 16"x 16"x 22" 42 lbs
