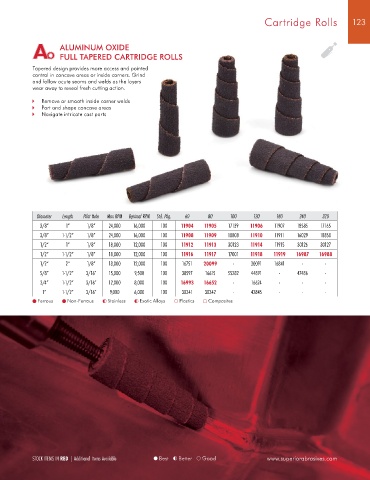

Cartridge Rolls 123

ALUMINUM OXIDE
FULL TAPERED CARTRIDGE ROLLS
Tapered design provides more access and pointed
control in concave areas or inside corners . Grind
and follow acute seams and welds as the layers
wear away to reveal fresh cutting action .
Remove or smooth inside corner welds
Port and shape concave areas
Navigate intricate cast parts

Diameter Length Pilot Hole Max RPM Optimal RPM Std. Pkg. 60 80 100 120 180 240 320
3/8” 1” 1/8” 24,000 16,000 100 11904 11905 17139 11906 11907 18585 17165
3/8” 1-1/2” 1/8” 24,000 16,000 100 11908 11909 18808 11910 11911 16029 18850
1/2” 1” 1/8” 18,000 12,000 100 11912 11913 30123 11914 11915 30126 30127
1/2” 1-1/2” 1/8” 18,000 12,000 100 11916 11917 17001 11918 11919 16987 16988
1/2” 2” 1/8” 18,000 12,000 100 16751 20099 - 30091 16841 - -
5/8” 1-1/2” 3/16” 15,000 9,500 100 38597 16615 55282 44891 - 47486 -
3/4” 1-1/2” 3/16” 12,000 8,000 100 16993 16652 - 16624 - - -
1” 1-1/2” 3/16” 9,000 6,000 100 30341 30342 - 42845 - - -
Ferrous Non-Ferrous Stainless Exotic Alloys Plastics Composites

STOCK ITEMS IN RED | Additional Items Available Best Better Good www .superiorabrasives .com
