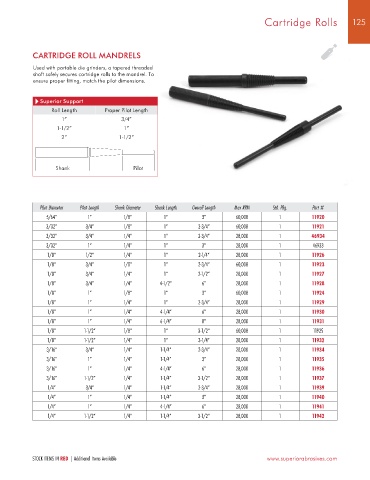

Page 127 - Superior Abrasives sold by All Industrial Tool Supply

Cartridge Rolls 125

CARTRIDGE ROLL MANDRELS

Used with portable die grinders, a tapered threaded
shaft safely secures cartridge rolls to the mandrel . To
ensure proper fitting, match the pilot dimensions .

Superior Support
Roll Length Proper Pilot Length
1” 3/4”
1-1/2” 1”
2” 1-1/2”

Shank Pilot

Pilot Diameter Pilot Length Shank Diameter Shank Length Overall Length Max RPM Std. Pkg. Part #
5/64” 1” 1/8” 1” 3” 60,000 1 11920
3/32” 3/4” 1/8” 1” 2-3/4” 60,000 1 11921
3/32” 3/4” 1/4” 1” 2-3/4” 28,000 1 46934
3/32” 1” 1/4” 1” 3” 28,000 1 46933
1/8” 1/2” 1/4” 1” 2-1/4” 28,000 1 11926
1/8” 3/4” 1/8” 1” 2-3/4” 60,000 1 11923
1/8” 3/4” 1/4” 1” 2-1/2” 28,000 1 11927
1/8” 3/4” 1/4” 4-1/2” 6” 28,000 1 11928
1/8” 1” 1/8” 1” 3” 60,000 1 11924
1/8” 1” 1/4” 1” 2-3/4” 28,000 1 11929
1/8” 1” 1/4” 4-1/4” 6” 28,000 1 11930
1/8” 1” 1/4” 6-1/4” 8” 28,000 1 11931
1/8” 1-1/2” 1/8” 1” 3-1/2” 60,000 1 11925
1/8” 1-1/2” 1/4” 1” 3-1/4” 28,000 1 11932
3/16” 3/4” 1/4” 1-1/4” 2-3/4” 28,000 1 11934
3/16” 1” 1/4” 1-1/4” 3” 28,000 1 11935
3/16” 1” 1/4” 4-1/4” 6” 28,000 1 11936
3/16” 1-1/2” 1/4” 1-1/4” 3-1/2” 28,000 1 11937
1/4” 3/4” 1/4” 1-1/4” 2-3/4” 28,000 1 11939
1/4” 1” 1/4” 1-1/4” 3” 28,000 1 11940
1/4” 1” 1/4” 4-1/4” 6” 28,000 1 11941
1/4” 1-1/2” 1/4” 1-1/4” 3-1/2” 28,000 1 11942

STOCK ITEMS IN RED | Additional Items Available www .superiorabrasives .com
