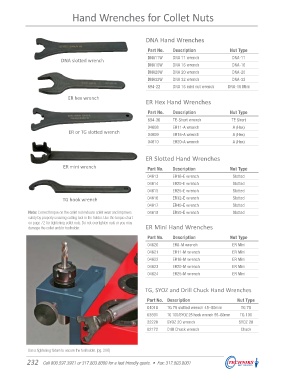

Page 234 - Techniks Catalog 2017

Hand Wrenches for Collet Nuts

DNA Hand Wrenches

Part No. Description Nut Type

DNA slotted wrench DNA11W DNA 11 wrench DNA-11
DNA16W DNA 16 wrench DNA-16
DNA20W DNA 20 wrench DNA-20
DNA32W DNA 32 wrench DNA-32
894-22 DNA 16 mini nut wrench DNA-16 Mini

ER hex wrench
ER Hex Hand Wrenches
Part No. Description Nut Type

894-36 TE-Short wrench TE Short
04608 ER11-A wrench A (Hex)
ER or TG slotted wrench 04609 ER16-A wrench A (Hex)
04610 ER20-A wrench A (Hex)

ER Slotted Hand Wrenches

ER mini wrench Part No. Description Nut Type
04613 ER16-E wrench Slotted
04614 ER20-E wrench Slotted
04615 ER25-E wrench Slotted
TG hook wrench 04616 ER32-E wrench Slotted
04617 ER40-E wrench Slotted
Note: Correct torque on the collet nut reduces collet wear and improves 04618 ER50-E wrench Slotted
safety by properly securing cutting tool in the holder. Use the torque chart
on page 72 for tightening collet nuts. Do not overtighten nuts or you may
damage the collet and/or toolholder. ER Mini Hand Wrenches
Part No. Description Nut Type
04620 ER8-M wrench ER Mini
04621 ER11-M wrench ER Mini
04622 ER16-M wrench ER Mini
04623 ER20-M wrench ER Mini
04624 ER25-M wrench ER Mini

TG, SYOZ and Drill Chuck Hand Wrenches

Part No. Description Nut Type

04018 TG 75 slotted wrench 45–50mm TG 75
03691 TG 100/SYOZ 25 hook wrench 55–60mm TG 100
22220 SYOZ 20 wrench SYOZ 20
82172 Drill Chuck wrench Chuck

Use a tightening fixture to secure the toolholder. (pg. 206)
