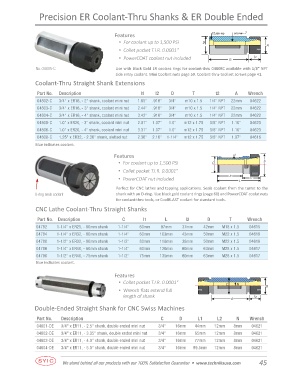

Page 47 - Techniks Catalog 2017

Precision ER Coolant-Thru Shanks & ER Double Ended

Features t2 pipe tap set screw – T
• For coolant up to 1,500 PSI D
A
• Collet pocket T.I.R. 0.0001"
• PowerCOAT coolant nut included l1 l2

No. 04805-C Use with Black Gold ER coolant rings for coolant-thru 04808C available with 1/8" NPT
side entry coolant. Mini Coolant nuts page 59. Coolant-thru-tool set screws page 41.
Coolant-Thru Straight Shank Extensions

Part No. Description I1 I2 D T t2 A Wrench
04802-C 3/4" x ER16, - 2" shank, coolant mini nut 1.65" .916" 3/4" m10 x 1.5 1/4" NPT 22mm 04622
04803-C 3/4" x ER16, - 3" shank, coolant mini nut 2.44" .916" 3/4" m10 x 1.5 1/4" NPT 22mm 04622
04804-C 3/4" x ER16, - 4" shank, coolant mini nut 3.42" .916" 3/4" m10 x 1.5 1/4" NPT 22mm 04622
04805-C 1.0" x ER20, - 3" shank, coolant mini nut 2.01" 1.07" 1.0" m12 x 1.75 3/8" NPT 1.10" 04623
04806-C 1.0" x ER20, - 4" shank, coolant mini nut 3.31" 1.07" 1.0" m12 x 1.75 3/8" NPT 1.10" 04623
04808-C 1.25" x ER32, - 2.36" shank, slotted nut 2.36" 2.16" 1-1/4" m12 x 1.75 3/8" NPT 1.97" 04616
Blue indicates coolant.

Features T
• For coolant up to 1,500 PSI C D
• Collet pocket T.I.R. 0.0001"
l1
• PowerCOAT nut included L l2
Perfect for CNC lathes and tapping applications. Seals coolant from the turret to the
O-ring seals coolant shank with an O-ring. Use black gold coolant rings (page 60) and PowerCOAT coolat nuts
for coolant-thru tools, or CoolBLAST coolant for standard tools.
CNC Lathe Coolant-Thru Straight Shanks

Part No. Description C I1 L I2 D T Wrench
04782 1-1/4" x ER25, - 60mm shank 1-1/4" 60mm 97mm 37mm 42mm M18 x 1.5 04615
04784 1-1/4" x ER32, - 60mm shank 1-1/4" 60mm 103mm 43mm 50mm M22 x 1.5 04616
04788 1-1/2" x ER32, - 80mm shank 1-1/2" 80mm 118mm 38mm 50mm M22 x 1.5 04616
04786 1-1/4" x ER40, - 60mm shank 1-1/4" 60mm 120mm 60mm 63mm M28 x 1.5 04617
04790 1-1/2" x ER40, - 75mm shank 1-1/2" 75mm 135mm 60mm 63mm M28 x 1.5 04617
Blue indicates coolant.

Features
• Collet pocket T.I.R. 0.0001" N
• Wrench flats extend full D
length of shank l2
l1
Double-Ended Straight Shank for CNC Swiss Machines

Part No. Description C D L1 L2 N Wrench
04801-DE 3/4" x ER11, - 2.5" shank, double ended mini nut 3/4" 16mm 44mm 12mm 8mm 04621
04802-DE 3/4" x ER11, - 3.35" shank, double ended mini nut 3/4" 16mm 65mm 12mm 8mm 04621
04803-DE 3/4" x ER11, - 4.0" shank, double ended mini nut 3/4" 16mm 77mm 12mm 8mm 04621
04804-DE 3/4" x ER11, - 5.0" shank, double ended mini nut 3/4" 16mm 99.5mm 12mm 8mm 04621

We stand behind all our products with our 100% Satisfaction Guarantee • www.techniksusa.com 45
