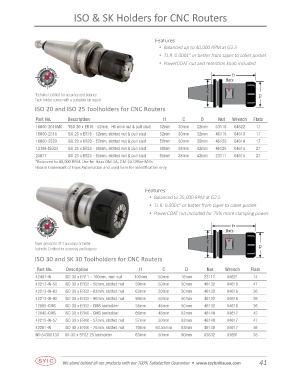

ISO & SK Holders for CNC Routers
Features
• Balanced up to 40,000 RPM at G2.5
• T.I.R. 0.0001" or better from taper to collet pocket
• PowerCOAT nut and retention knob included
Techniks Certified for accuracy and balance
Each holder comes with a complete lab report
ISO 20 and ISO 25 Toolholders for CNC Routers
Part No. Description l1 C D Nut Wrench Flats
16000-2016MC *ISO 20 x ER16 - 52mm, HS mini nut & pull stud 52mm 30mm 22mm 53116 04622 17
16000-2516 ISO 20 x ER16 - 52mm, slotted nut & pull stud 52mm 30mm 32mm 46116 04613 17
16000-2520 ISO 20 x ER20 - 52mm, slotted nut & pull stud 52mm 30mm 35mm 46120 04614 17
12194-ISO25 ISO 25 x ER25 - 50mm, slotted nut & pull stud 50mm 38mm 42mm 46125 04615 27
25077 ISO 25 x ER25 - 65mm, slotted nut & pull stud 65mm 38mm 42mm 23111 04615 27
*Balanced to 40,000 RPM. Use for Haas OM-1A, OM-2A Office Mills.
Haas is trademark of Haas Automation and used here for identification only.
Features
• Balanced to 25,000 RPM at G2.5
• T.I.R. 0.0001" or better from taper to collet pocket
• PowerCOAT nut included for 75% more clamping power
Taper ground to AT3 accuracy or better
Techniks Certified for accuracy and balance
ISO 30 and SK 30 Toolholders for CNC Routers
Part No. Description l1 C D Nut Wrench Flats
42407-W ISO 30 x ER11 - 100mm, mini nut 100mm 50mm 16mm 23111 04621 14
42213-W-50 ISO 30 x ER32 - 50mm, slotted nut 50mm 50mm 50mm 46132 04616 47
42213-W-63 ISO 30 x ER32 - 63mm, slotted nut 63mm 50mm 50mm 46132 04616 36
42213-W-90 ISO 30 x ER32 - 90mm, slotted nut 90mm 50mm 50mm 46132 04616 36
12000-CMS ISO 30 x ER32 - CMS toolholder 58mm 46mm 50mm 46132 04616 36
12040-CMS ISO 30 x ER40 - CMS toolholder 66mm 46mm 63mm 46140 04617 42
42215-W-57 ISO 30 x ER40 - 57mm, slotted nut 57mm 50mm 63mm 46140 04617 47
42261-W ISO 40 x ER40 - 70mm, slotted nut 70mm 63.55mm 63mm 46140 04617 46
NT-54300130 SK-30 x SYOZ 25 toolholder 63mm 50mm 60mm 83632 03691 38
