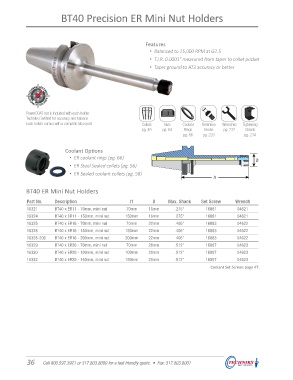

Page 38 - Techniks Catalog 2017

BT40 Precision ER Mini Nut Holders

Features
• Balanced to 25,000 RPM at G2.5
• T.I.R. 0.0001" measured from taper to collet pocket

• Taper ground to AT3 accuracy or better

PowerCOAT nut is included with each holder
Techniks Certified for accuracy and balance
Each holder comes with a complete lab report Collets Nuts Coolant Retention Wrenches Tightening
pg. 49 pg. 64 Rings Knobs pg. 232 Stands
pg. 66 pg. 228 pg. 234

Coolant Options
• ER coolant rings (pg. 66)
D
• ER Steel Sealed collets (pg. 56)
• ER Sealed coolant collets (pg. 58)

BT40 ER Mini Nut Holders

Part No. Description l1 D Max. Shank Set Screw Wrench
16321 BT40 x ER11 - 70mm, mini nut 70mm 16mm .275" 16081 04621
16324 BT40 x ER11 - 150mm, mini nut 150mm 16mm .275" 16081 04621
16325 BT40 x ER16 - 70mm, mini nut 70mm 22mm .406" 16083 04622
16328 BT40 x ER16 - 150mm, mini nut 150mm 22mm .406" 16083 04622
16328-200 BT40 x ER16 - 200mm, mini nut 200mm 22mm .406" 16083 04622
16329 BT40 x ER20 - 70mm, mini nut 70mm 28mm .512" 16087 04623
16330 BT40 x ER20 - 100mm, mini nut 100mm 28mm .512" 16087 04623
16332 BT40 x ER20 - 150mm, mini nut 150mm 28mm .512" 16087 04623
Coolant Set Screws page 47.
