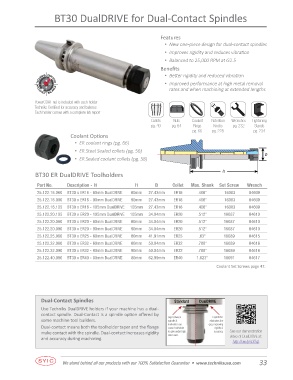

BT30 DualDRIVE for Dual-Contact Spindles
Features
• New one-piece design for dual-contact spindles
• Improves rigidity and reduces vibration
• Balanced to 25,000 RPM at G2.5
Benefits
• Better rigidity and reduced vibration
• Improved performance at high metal removal
rates and when machining at extended lengths
PowerCOAT nut is included with each holder
Techniks Certified for accuracy and balance
Each holder comes with a complete lab report
Collets Nuts Coolant Retention Wrenches Tightening
pg. 49 pg. 64 Rings Knobs pg. 232 Stands
pg. 66 pg. 228 pg. 234
Coolant Options
• ER coolant rings (pg. 66)
• ER Steel Sealed collets (pg. 56)
D
• ER Sealed coolant collets (pg. 58)
BT30 ER DualDRIVE Toolholders
Part No. Description - l1 l1 D Collet Max. Shank Set Screw Wrench
25.122.16.060 BT30 x ER16 - 60mm DualDRIVE 60mm 27.43mm ER16 .406" 16083 04609
25.122.16.090 BT30 x ER16 - 90mm DualDRIVE 90mm 27.43mm ER16 .406" 16083 04609
25.122.16.105 BT30 x ER16 - 105mm DualDRIVE 105mm 27.43mm ER16 .406" 16083 04609
25.122.20.105 BT30 x ER20 - 105mm DualDRIVE 105mm 34.04mm ER20 .512" 16087 04610
25.122.20.060 BT30 x ER20 - 60mm DualDRIVE 60mm 34.04mm ER20 .512" 16087 04610
25.122.20.090 BT30 x ER20 - 90mm DualDRIVE 90mm 34.04mm ER20 .512" 16087 04610
25.122.25.060 BT30 x ER25 - 60mm DualDRIVE 60mm 41.91mm ER25 .63" 16089 04615
25.122.32.060 BT30 x ER32 - 60mm DualDRIVE 60mm 50.04mm ER32 .788" 16089 04616
25.122.32.090 BT30 x ER32 - 90mm DualDRIVE 90mm 50.04mm ER32 .788" 16089 04616
25.122.40.080 BT30 x ER40 - 80mm DualDRIVE 80mm 62.99mm ER40 1.023" 16091 04617
Coolant Set Screws page 47.
Dual-Contact Spindles Standard DualDRIVE
Use Techniks DualDRIVE holders if your machine has a dual-
contact spindle. Dual-Contact is a spindle option offered by Gap between DualDRIVE
some machine tool builders. spindle & eliminates the
Dual-contact means both the toolholder taper and the flange toolholder can gap, improving
rigidity &
cause toolholder
make contact with the spindle. Dual-contact increases rigidity to give under high accuracy. See our demonstration
side loads.
and accuracy during machining. video of DualDRIVE at:
http://ow.ly/sUOqL
