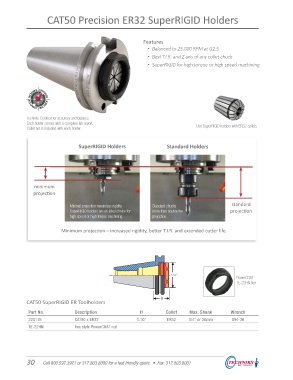

CAT50 Precision ER32 SuperRIGID Holders

Features
• Balanced to 25,000 RPM at G2.5
• Best T.I.R. and Z axis of any collet chuck
• SuperRIGID for high torque or high speed machining

Techniks Certified for accuracy and balance.
Each holder comes with a complete lab report. Use SuperRIGID holders with ER32 collets.
Collet nut is included with each holder.

SuperRIGID Holders Standard Holders

minimum
projection

Minimal projection maximizes rigidity. Standard chucks standard
SuperRIGID holders are an ideal choice for more than double the projection
high speed or high torque machining. projection.

Minimum projection = increased rigidity, better T.I.R. and extended cutter life.

1.57"
PowerCOAT
TE-22HN Nut

CAT50 SuperRIGID ER Toolholders

Part No. Description l1 Collet Max. Shank Wrench
22311S CAT50 x ER32 1.10" ER32 3/4" or 20mm 894-36
TE-22HN hex style PowerCOAT nut
