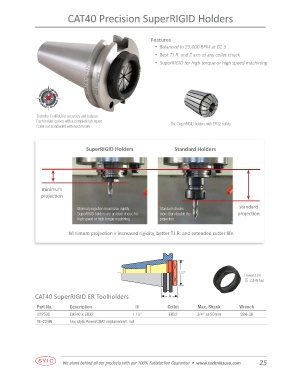

CAT40 Precision SuperRIGID Holders

Features
• Balanced to 25,000 RPM at G2.5
• Best T.I.R. and Z axis of any collet chuck

• SuperRIGID for high torque or high speed machining

Techniks Certified for accuracy and balance
Each holder comes with a complete lab report
Collet nut is included with each holder Use SuperRIGID holders with ER32 collets.

SuperRIGID Holders Standard Holders

minimum
projection

Minimal projection maximizes rigidity. Standard chucks standard
SuperRIGID holders are an ideal choice for more than double the projection
high speed or high torque machining. projection.

Minimum projection = increased rigidity, better T.I.R. and extended cutter life.

1.57"
PowerCOAT
TE-22HN Nut

CAT40 SuperRIGID ER Toolholders

Part No. Description l1 Collet Max. Shank Wrench
22253S CAT40 x ER32 1.10" ER32 3/4" or 20mm 894-36
TE-22HN hex style PowerCOAT replacement nut

We stand behind all our products with our 100% Satisfaction Guarantee • www.techniksusa.com 25
