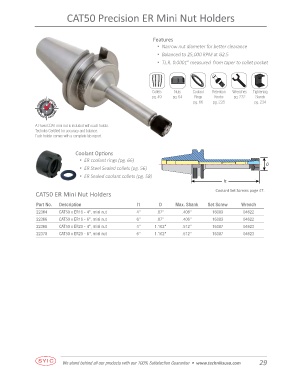

Page 31 - Techniks Catalog 2017

CAT50 Precision ER Mini Nut Holders

Features
• Narrow nut diameter for better clearance
• Balanced to 25,000 RPM at G2.5
• T.I.R. 0.0001" measured from taper to collet pocket

Collets Nuts Coolant Retention Wrenches Tightening
pg. 49 pg. 64 Rings Knobs pg. 232 Stands
pg. 66 pg. 228 pg. 234

A PowerCOAT mini nut is included with each holder.
Techniks Certified for accuracy and balance.
Each holder comes with a complete lab report.

Coolant Options
• ER coolant rings (pg. 66)
D
• ER Steel Sealed collets (pg. 56)
• ER Sealed coolant collets (pg. 58)

Coolant Set Screws page 47.
CAT50 ER Mini Nut Holders
Part No. Description l1 D Max. Shank Set Screw Wrench

22364 CAT50 x ER16 - 4", mini nut 4" .87" .406" 16083 04622
22366 CAT50 x ER16 - 6", mini nut 6" .87" .406" 16083 04622
22368 CAT50 x ER20 - 4", mini nut 4" 1.102" .512" 16087 04623
22370 CAT50 x ER20 - 6", mini nut 6" 1.102" .512" 16087 04623

We stand behind all our products with our 100% Satisfaction Guarantee • www.techniksusa.com 29
