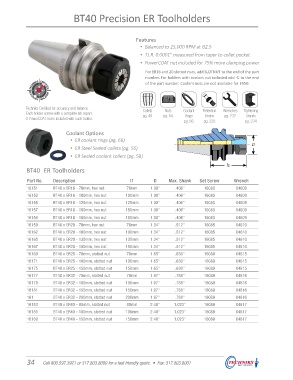

Page 36 - Techniks Catalog 2017
P. 36
BT40 Precision ER Toolholders
Features
• Balanced to 25,000 RPM at G2.5
• T.I.R. 0.0001" measured from taper to collet pocket
• PowerCOAT nut included for 75% more clamping power
For ER16 and 20 slotted nuts, add SLOTNUT to the end of the part
number. For holders with coolant nut included add -C to the end
of the part number. Coolant nuts are not available for ER50.
Techniks Certified for accuracy and balance. Collets Nuts Coolant Retention Wrenches Tightening
Each holder comes with a complete lab report. pg. 49 pg. 64 Rings Knobs pg. 232 Stands
A PowerCOAT nut is included with each holder.
pg. 66 pg. 228 pg. 234
Coolant Options
• ER coolant rings (pg. 66)
D
• ER Steel Sealed collets (pg. 56)
• ER Sealed coolant collets (pg. 58)
l1
BT40 ER Toolholders
Part No. Description l1 D Max. Shank Set Screw Wrench
16151 BT40 x ER16 - 70mm, hex nut 70mm 1.08" .406" 16083 04609
16153 BT40 x ER16 - 100mm, hex nut 100mm 1.08" .406" 16083 04609
16155 BT40 x ER16 - 125mm, hex nut 125mm 1.08" .406" 16083 04609
16157 BT40 x ER16 - 150mm, hex nut 150mm 1.08" .406" 16083 04609
16158 BT40 x ER16 - 180mm, hex nut 180mm 1.08" .406" 16083 04609
16159 BT40 x ER20 - 70mm, hex nut 70mm 1.34" .512" 16085 04610
16162 BT40 x ER20 - 100mm, hex nut 100mm 1.34" .512" 16085 04610
16165 BT40 x ER20 - 135mm, hex nut 135mm 1.34" .512" 16085 04610
16167 BT40 x ER20 - 150mm, hex nut 150mm 1.34" .512" 16085 04610
16169 BT40 x ER25 - 70mm, slotted nut 70mm 1.65" .630" 16089 04615
16171 BT40 x ER25 - 100mm, slotted nut 100mm 1.65" .630" 16089 04615
16175 BT40 x ER25 - 150mm, slotted nut 150mm 1.65" .630" 16089 04615
16177 BT40 x ER32 - 70mm, slotted nut 70mm 1.97" .788" 16089 04616
16179 BT40 x ER32 - 100mm, slotted nut 100mm 1.97" .788" 16089 04616
16181 BT40 x ER32 - 150mm, slotted nut 150mm 1.97" .788" 16089 04616
161 BT40 x ER32 - 200mm, slotted nut 200mm 1.97" .788" 16089 04616
16183 BT40 x ER40 - 80mm, slotted nut 80mm 2.48" 1.023" 16089 04617
16185 BT40 x ER40 - 100mm, slotted nut 100mm 2.48" 1.023" 16089 04617
16189 BT40 x ER40 - 150mm, slotted nut 150mm 2.48" 1.023" 16089 04617
