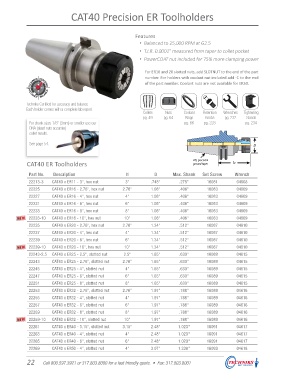

Page 24 - Techniks Catalog 2017

CAT40 Precision ER Toolholders

Features
• Balanced to 25,000 RPM at G2.5
• T.I.R. 0.0001" measured from taper to collet pocket
• PowerCOAT nut included for 75% more clamping power

For ER16 and 20 slotted nuts, add SLOTNUT to the end of the part
number. For holders with coolant nut included add -C to the end
of the part number. Coolant nuts are not available for ER50.

Techniks Certified for accuracy and balance
Each holder comes with a complete lab report
Collets Nuts Coolant Retention Wrenches Tightening
pg. 49 pg. 64 Rings Knobs pg. 232 Stands
For shank sizes 1/8" (3mm) or smaller use our pg. 66 pg. 228 pg. 234
DNA (dead nuts accurate)
collet results.

See page 54. D

CAT40 ER Toolholders AT3 precision l1
ground taper
Part No. Description l1 D Max. Shank Set Screw Wrench
22213-3 CAT40 x ER11 - 3", hex nut 3" .748" .275" 16081 04608
22225 CAT40 x ER16 - 2.76", hex nut 2.76" 1.08" .406" 16083 04609
22227 CAT40 x ER16 - 4", hex nut 4" 1.08" .406" 16083 04609
22231 CAT40 x ER16 - 6", hex nut 6" 1.08" .406" 16083 04609
22233 CAT40 x ER16 - 8", hex nut 8" 1.08" .406" 16083 04609
22233-10 CAT40 x ER16 - 10", hex nut 10" 1.08" .406" 16083 04609
22235 CAT40 x ER20 - 2.76", hex nut 2.76" 1.34" .512" 16087 04610
22237 CAT40 x ER20 - 4", hex nut 4" 1.34" .512" 16087 04610
22239 CAT40 x ER20 - 6", hex nut 6" 1.34" .512" 16087 04610
22239-10 CAT40 x ER20 - 10", hex nut 10" 1.34" .512" 16087 04610
22243-2.5 CAT40 x ER25 - 2.5", slotted nut 2.5" 1.65" .630" 16089 04615
22243 CAT40 x ER25 - 2.76", slotted nut 2.76" 1.65" .630" 16089 04615
22245 CAT40 x ER25 - 4", slotted nut 4" 1.65" .630" 16089 04615
22247 CAT40 x ER25 - 6", slotted nut 6" 1.65" .630" 16089 04615
22251 CAT40 x ER25 - 8", slotted nut 8" 1.65" .630" 16089 04615
22253 CAT40 x ER32 - 2.76", slotted nut 2.76" 1.97" .788" 16089 04616
22255 CAT40 x ER32 - 4", slotted nut 4" 1.97" .788" 16089 04616
22257 CAT40 x ER32 - 6", slotted nut 6" 1.97" .788" 16089 04616
22259 CAT40 x ER32 - 8", slotted nut 8" 1.97" .788" 16089 04616
22259-10 CAT40 x ER32 - 10", slotted nut 10" 1.97" .788" 16089 04616
22261 CAT40 x ER40 - 3.15", slotted nut 3.15" 2.48" 1.023" 16091 04617
22263 CAT40 x ER40 - 4", slotted nut 4" 2.48" 1.023" 16091 04617
22265 CAT40 x ER40 - 6", slotted nut 6" 2.48" 1.023" 16091 04617
22269 CAT40 x ER50 - 4", slotted nut 4" 3.07" 1.338" 16093 04618

22 Call 800.597.3921 or 317.803.8000 for a fast friendly quote. • Fax: 317.803.8001
