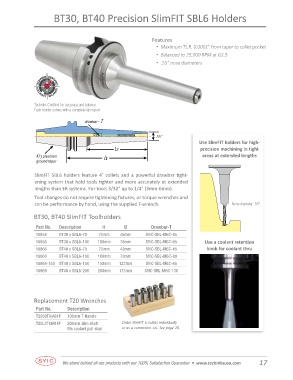

Page 19 - Techniks Catalog 2017

BT30, BT40 Precision SlimFIT SBL6 Holders

Features
• Maximum T.I.R. 0.0001" from taper to collet pocket
• Balanced to 25,000 RPM at G2.5

• .55" nose diameters

Techniks Certified for accuracy and balance
Each holder comes with a complete lab report

Use SlimFIT holders for high-
l2 precision machining in tight
areas at extended lengths

SlimFIT SBL6 holders feature 4˚ collets and a powerful drawbar tight-
ening system that hold tools tighter and more accurately at extended
lengths than ER systems. For tools 3/32" up to 1/4" (3mm-6mm).
Tool changes do not require tightening fixtures, or torque wrenches and
can be performance by hand, using the supplied T-wrench. Nose diameter .55"

BT30, BT40 SlimFIT Toolholders

Part No. Description l1 l2 Drawbar-T
18854 BT30 x SBL6-70 70mm 48mm SYIC-SBL-M6C-45
18856 BT30 x SBL6-100 100mm 78mm SYIC-SBL-M6C-65 Use a coolant retention
18866 BT40 x SBL6-70 70mm 43mm SYIC-SBL-M6C-45 knob for coolant thru
18868 BT40 x SBL6-100 100mm 73mm SYIC-SBL-M6C-80
18868-150 BT40 x SBL6-150 150mm 123mm SYIC-SBL-M6C-65
18869 BT40 x SBL6-200 200mm 173mm SYIC-SBL-M6C-130

Replacement T20 Wrenches

Part No. Description
T2050TKIA81F 100mm T-Handle
T20L3TKIA81F 200mm slim shaft Order SlimFIT 6 collets individually
fits coolant pull stud or as a convenient set. See page 20.

We stand behind all our products with our 100% Satisfaction Guarantee • www.techniksusa.com 17
