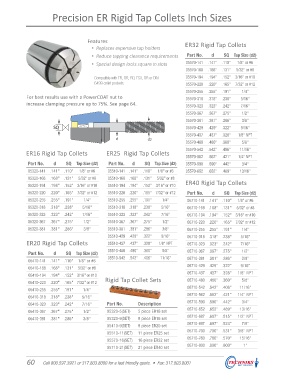

Page 62 - Techniks Catalog 2017

Precision ER Rigid Tap Collets Inch Sizes

Features ER32 Rigid Tap Collets
• Replaces expensive tap holders
• Reduce tapping clearance requirements Part No. d SQ Tap Size (d2)
• Special design locks square in slots 05570-141 .141" .110" 1/8" or #6
05570-168 .168" .131" 5/32" or #8
Compatible with ER, DR, RD, ESX, BR or DIN 05570-194 .194" .152" 3/16" or #10
6499 collet pockets. 05570-220 .220" .165" 7/32" or #12
05570-255 .255" .191" 1/4"
For best results use with a PowerCOAT nut to 05570-318 .318" .238" 5/16"
increase clamping pressure up to 75%. See page 64. 05570-323 .323" .242" 7/16"

05570-367 .367" .275" 1/2"
05570-381 .381" .286" 3/8"
05570-429 .429" .322" 9/16"
05570-437 .437" .328" 1/8" NPT
05570-480 .480" .360" 5/8"
05570-542 .542" .406" 11/16"
ER16 Rigid Tap Collets ER25 Rigid Tap Collets
05570-562 .562" .421" 1/4" NPT
Part No. d SQ Tap Size (d2) Part No. d SQ Tap Size (d2) 05570-590 .590" .442" 3/4"
05320-141 .141" .110" 1/8" or #6 05510-141 .141" .110" 1/8" or #6 05570-652 .652" .489" 13/16"
05320-168 .168" .131" 5/32" or #8 05510-168 .168" .131" 5/32" or #8
05320-194 .194" .152" 3/16" or #10 05510-194 .194" .152" 3/16" or #10 ER40 Rigid Tap Collets
05320-220 .220" .165" 7/32" or #12 05510-220 .220" .165" 7/32" or #12 Part No. d SQ Tap Size (d2)
05320-255 .255" .191" 1/4" 05510-255 .255" .191" 1/4" 05710-141 .141" .110" 1/8" or #6
05320-318 .318" .238" 5/16" 05510-318 .318" .238" 5/16" 05710-168 .168" .131" 5/32" or #8
05320-323 .323" .242" 7/16" 05510-323 .323" .242" 7/16" 05710-194 .194" .152" 3/16" or #10
05320-367 .367" .275" 1/2" 05510-367 .367" .275" 1/2" 05710-220 .220" .165" 7/32" or #12
05320-381 .381" .286" 3/8" 05510-381 .381" .286" 3/8" 05710-255 .255" .191" 1/4"
05510-429 .429" .322" 9/16" 05710-318 .318" .238" 5/16"
ER20 Rigid Tap Collets 05510-437 .437" .328" 1/8" NPT 05710-323 .323" .242" 7/16"

05510-480 .480" .360" 5/8" 05710-367 .367" .275" 1/2"
Part No. d SQ Tap Size (d2)
05510-542 .542" .406" 11/16" 05710-381 .381" .286" 3/8"
05410-141 .141" .110" 1/8" or #6
05710-429 .429" .322" 9/16"
05410-168 .168" .131" 5/32" or #8
05710-437 .437" .328" 1/8" NPT
05410-194 .194" .152" 3/16" or #10
05410-220 .220" .165" 7/32" or #12 Rigid Tap Collet Sets 05710-480 .480" .360" 5/8"
05710-542 .542" .406" 11/16"
05410-255 .255" .191" 1/4"
05710-562 .562" .421" 1/4" NPT
05410-318 .318" .238" 5/16"
05410-323 .323" .242" 7/16" Part No. Description 05710-590 .590" .442" 3/4"
05410-367 .367" .275" 1/2" 05320-5(SET) 5 piece ER16 set 05710-652 .652" .489" 13/16"
05410-381 .381" .286" 3/8" 05320-9(SET) 9 piece ER16 set 05710-687 .687" .515" 1/2" NPT
05710-697 .697" .523" 7/8"
05410-9(SET) 9 piece ER20 set
05710-700 .700" .531" 3/8" NPT
05510-11(SET) 11 piece ER25 set
05710-760 .760" .570" 15/16"
05570-16(SET) 16 piece ER32 set
05710-800 .800" .600" 1"
05710-21(SET) 21 piece ER40 set
