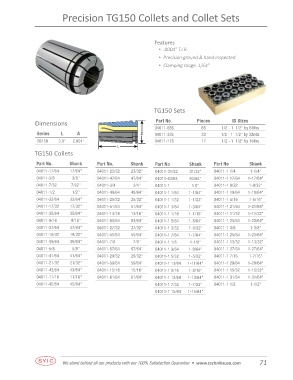

Page 73 - Techniks Catalog 2017

Precision TG150 Collets and Collet Sets

Features
• .0004" T.I.R.
• Precision ground & hand inspected
• Clamping range: 1/64"

TG150 Sets

Dimensions Part No. Pieces ID Sizes
04011-65S 65 1/2 - 1 1/2" by 64ths
Series L A 04011-33S 33 1/2 - 1 1/2" by 32nds
TG150 3.0" 2.001" 04011-17S 17 1/2 - 1 1/2" by 16ths

TG150 Collets

Part No. Shank Part No. Shank Part No Shank Part No Shank
04011-17/64 17/64" 04011-23/32 23/32" 04011-31/32 31/32" 04011-1 1/4 1-1/4"
04011-3/8 3/8" 04011-47/64 47/64" 04011-63/64 63/64" 04011-1 17/64 1-17/64"
04011-7/32 7/32" 04011-3/4 3/4" 04011-1 1 0" 04011-1 9/32 1-9/32"
04011-1/2 1/2" 04011-49/64 49/64" 04011-1 1/64 1-1/64" 04011-1 19/64 1-19/64"
04011-33/64 33/64" 04011-25/32 25/32" 04011-1 1/32 1-1/32" 04011-1 5/16 1-5/16"
04011-17/32 17/32" 04011-51/64 51/64" 04011-1 3/64 1-3/64" 04011-1 21/64 1-21/64"
04011-35/64 35/64" 04011-13/16 13/16" 04011-1 1/16 1-1/16" 04011-1 11/32 1-11/32"
04011-9/16 9/16" 04011-53/64 53/64" 04011-1 5/64 1-5/64" 04011-1 23/64 1-23/64"
04011-37/64 37/64" 04011-27/32 27/32" 04011-1 3/32 1-3/32" 04011-1 3/8 1-3/8"
04011-19/32 19/32" 04011-55/64 55/64" 04011-1 7/64 1-7/64" 04011-1 25/64 1-25/64"
04011-39/64 39/64" 04011-7/8 7/8" 04011-1 1/8 1-1/8" 04011-1 13/32 1-13/32"
04011-5/8 5/8" 04011-57/64 57/64" 04011-1 9/64 1-9/64" 04011-1 27/64 1-27/64"
04011-41/64 41/64" 04011-29/32 29/32" 04011-1 5/32 1-5/32" 04011-1 7/16 1-7/16"
04011-21/32 21/32" 04011-59/64 59/64" 04011-1 11/64 1-11/64" 04011-1 29/64 1-29/64"
04011-43/64 43/64" 04011-15/16 15/16" 04011-1 3/16 1-3/16" 04011-1 15/32 1-15/32"
04011-11/16 11/16" 04011-61/64 61/64" 04011-1 13/64 1-13/64" 04011-1 31/64 1-31/64"
04011-45/64 45/64" 04011-1 7/32 1-7/32" 04011-1 1/2 1-1/2"
04011-1 15/64 1-15/64"
