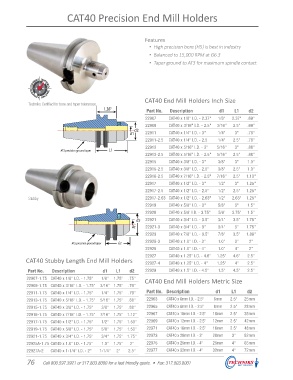

Page 78 - Techniks Catalog 2017

CAT40 Precision End Mill Holders

Features
• High precision bore (H5) is best in industry
• Balanced to 15,000 RPM at G6.3

• Taper ground to AT3 for maximum spindle contact

CAT40 End Mill Holders Inch Size
Techniks Certified for bore and taper tolerances
Part No. Description d1 L1 d2
22907 CAT40 x 1/8" I.D. - 2.37" 1/8" 2.37" .69"
22909 CAT40 x 3/16" I.D. - 2.5" 3/16" 2.5" .69"
22911 CAT40 x 1/4" I.D. - 3" 1/4" 3" .78"
22911-2.5 CAT40 x 1/4" I.D. - 2.5 1/4" 2.5" .78"
22913 CAT40 x 5/16" I.D. - 3" 5/16" 3" .88"
22913-2.5 CAT40 x 5/16" I.D. - 2.5" 5/16" 2.5" .88"
22915 CAT40 x 3/8" I.D. - 3" 3/8" 3" 1.0"
22915-2.5 CAT40 x 3/8" I.D. - 2.5" 3/8" 2.5" 1.0"
22916-2.5 CAT40 x 7/16" I.D. - 2.5" 7/16" 2.5" 1.13"
22917 CAT40 x 1/2" I.D. - 3" 1/2" 3" 1.25"
22917-2.5 CAT40 x 1/2" I.D. - 2.5" 1/2" 2.5" 1.25"
Stubby 22917-2.63 CAT40 x 1/2" I.D. - 2.63" 1/2" 2.63" 1.25"
22919 CAT40 x 5/8" I.D. - 3" 5/8" 3" 1.5"
22920 CAT40 x 5/8' I.D. - 3.75" 5/8' 3.75" 1.5"
d2 22921 CAT40 x 3/4" I.D. - 3.5" 3/4" 3.5" 1.75"
d1 22921-3 CAT40 x 3/4" I.D. - 3" 3/4" 3" 1.75"
22923 CAT40 x 7/8" I.D. - 3.5" 7/8" 3.5" 1.88"

AT3 precision ground taper L1 22925-3 CAT40 x 1.0" I.D. - 3" 1.0" 3" 2"
22925 CAT40 x 1.0" I.D. - 4" 1.0" 4" 2"
22927 CAT40 x 1.25" I.D. - 4.6" 1.25" 4.6" 2.5"
CAT40 Stubby Length End Mill Holders 22927-4 CAT40 x 1.25" I.D. - 4" 1.25" 4" 2.5"

Part No. Description d1 L1 d2 22929 CAT40 x 1.5" I.D. - 4.5" 1.5" 4.5" 2.5"
22907-1.75 CAT40 x 1/8" I.D. - 1.75" 1/8" 1.75" .75" CAT40 End Mill Holders Metric Size
22909-1.75 CAT40 x 3/16" I.D. - 1.75" 3/16" 1.75" .79"
22911-1.75 CAT40 x 1/4" I.D. - 1.75" 1/4" 1.75" .79" Part No. Description d1 L1 d2
22913-1.75 CAT40 x 5/16" I.D. - 1.75" 5/16" 1.75" .88" 22963 CAT40 x 6mm I.D. - 2.5" 6mm 2.5" 25mm
22915-1.75 CAT40 x 3/8" I.D. - 1.75" 3/8" 1.75" .88" 22965 CAT40 x 8mm I.D. - 2.5" 8mm 2.5" 28mm
22916-1.75 CAT40 x 7/16" I.D. - 1.75" 7/16" 1.75" 1.12" 22967 CAT40 x 10mm I.D. - 2.5" 10mm 2.5" 35mm
22917-1.75 CAT40 x 1/2" I.D. - 1.75" 1/2" 1.75" 1.50" 22969 CAT40 x 12mm I.D. - 2.5" 12mm 2.5" 42mm
22919-1.75 CAT40 x 5/8" I.D. - 1.75" 5/8" 1.75" 1.50" 22971 CAT40 x 16mm I.D. - 2.5" 16mm 2.5" 48mm
22921-1.75 CAT40 x 3/4" I.D. - 1.75" 3/4" 1.75" 1.75" 22973 CAT40 x 20mm I.D. - 3" 20mm 3" 52mm
22925A-1.75 CAT40 x 1.0" I.D. - 1.75" 1.0" 1.75" 2" 22975 CAT40 x 25mm I.D. - 4" 25mm 4" 65mm
22927A-2 CAT40 x 1-1/4" I.D. - 2" 1-1/4" 2" 2.5" 22977 CAT40 x 32mm I.D. - 4" 32mm 4" 72mm
