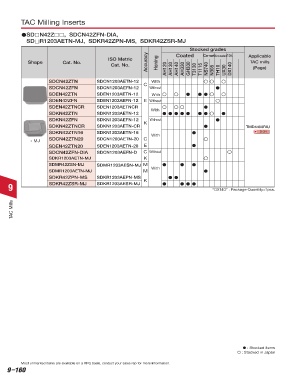

Page 760 - Tungaloy Catalog

TAC Milling Inserts

SDN42Z, SDCN42ZFN-DIA,
SDR1203AETN-MJ, SDKR42ZPN-MS, SDKR42ZSR-MJ

Stocked grades
ISO Metric Coated Cermet Uncoated T-DIA Applicable
Shape Cat. No. Accuracy TAC mills
Cat. No. Honing AH120 AH130 AH140 AH330 GH330 T3130 T1115 NS740 N308 TH10 UX30 DX140 (Page)

SDCN42ZTN SDCN1203AETN-12 C With
SDCN42ZFN SDCN1203AEFN-12 Without 
SDEN42ZTN SDEN1203AETN-12 With   
SDEN42ZFN SDEN1203AEFN-12 E Without
SDEN42ZTNCR SDEN1203AETNCR 
With
SDKN42ZTN SDKN1203AETN-12        
SDKN42ZFN SDKN1203AEFN-12 K Without 
SDKN42ZTNCR SDKN1203AETN-CR  TMD4400RIU
SDKN42ZTN16 SDKN1203AETN-16  9-34
SDCN42ZTN20 SDCN1203AETN-20 C With
- MJ
SDEN42ZTN20 SDEN1203AETN-20 E 
SDCN42ZFN-DIA SDCN1203AEFN-D C Without
SDKR1203AETN-MJ K
SDMR42ZSN-MJ SDMR1203AESN-MJ M   
SDMR1203AETN-MJ M With 
SDKR42ZPN-MS SDKR1203AEPN-MS K  
9 SDKR42ZSR-MJ SDKR1203AESR-MJ     “DX140” : Package Quantity=1pcs.

TAC Mills

 : Stocked items
: Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–160
