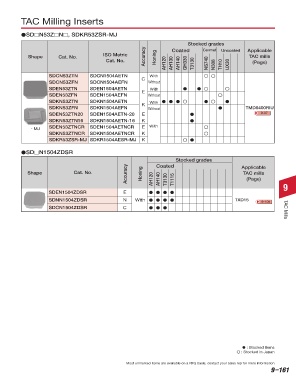

Page 761 - Tungaloy Catalog

TAC Milling Inserts

dSDN53ZN, SDKR53ZSR-MJ
Stocked grades

TAC mills
Shape Cat. No. ISO Metric Accuracy Honing Coated Cermet Uncoated Applicable
Cat. No. AH120 AH130 AH140 GH330 T3130 NS740 N308 TH10 UX30 (Page)

SDCN53ZTN SDCN1504AETN With
SDCN53ZFN SDCN1504AEFN C Without
SDEN53ZTN SDEN1504AETN E With d d
SDEN53ZFN SDEN1504AEFN Without
SDKN53ZTN SDKN1504AETN With d d d d d
SDKN53ZFN SDKN1504AEFN K Without d TMD5400RIU
SDEN53ZTN20 SDEN1504AETN-20 E d 9-37
SDKN53ZTN16 SDKN1504AETN-16 K d
- MJ SDEN53ZTNCR SDEN1504AETNCR E With
SDKN53ZTNCR SDKN1504AETNCR K
SDKR53ZSR-MJ SDKR1504AESR-MJ K d

dSDN1504ZDSR
Stocked grades
Coated
Accuracy Honing AH120 AH140 T3130 T1115 (Page)
Shape Cat. No. Applicable
TAC mills

SDEN1504ZDSR E d d d d 9
SDNN1504ZDSR N With d d d d TXD15 9-109
SDCN1504ZDSR C d d d TAC Mills

d : Stocked items
: Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–161
