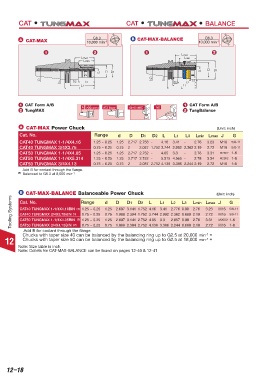

Page 926 - Tungaloy Catalog

CAT • CAT • • BALANCE

G6.3
G6.3
A CAT-MAX 10,000 min -1 B CAT-MAX-BALANCE 10,000 min -1
1 2 1 2
Lmax
Lmax Lmin
Lmin

d D D1 d D D1
G J
G J D2 L3 D2 L2 L3
L1 L1
L L

1 CAT Form A/B N5 1 CAT Form A/B
2 TungMAX A A ➚ A 0.00012 AT3 Taper 58-60 HRC 2 TungBalance

A CAT-MAX Power Chuck (Unit: inch)

Cat. No. Range d D D1 D2 L L1 L3 Lmin Lmax J G
CAT40 TUNGMAX 1-1/4X4.16 1.25 ~ 0.25 1.25 2.717 2.756 - 4.16 3.41 - 2.76 3.23 M16 5/8-11
CAT40 TUNGMAX 3/4X3.75 0.75 ~ 0.25 0.75 2 2.087 1.752 3.744 2.992 2.362 2.19 2.72 M16 5/8-11
CAT50 TUNGMAX 1-1/4X4.05 1.25 ~ 0.25 1.25 2.717 2.752 - 4.05 3.3 - 2.76 3.31 M20X2 1-8
CAT50 TUNGMAX 1-1/4X5.314 1.25 ~ 0.25 1.25 2.717 2.752 - 5.315 4.565 - 2.78 3.34 M20X2 1-8
CAT50 TUNGMAX 3/4X4.13 0.75 ~ 0.25 0.75 2 2.087 2.752 4.138 3.386 2.244 2.19 2.72 M16 1-8
Add B for coolant through the flange.
(1) Balanced to G6.3 at 8,000 min -1

B CAT-MAX-BALANCE Balanceable Power Chuck (Unit: inch)
Tooling Systems CAT40 TUNGMAX 1-1/4X4.16BIN (1) 1.25 ~ 0.25 d D D1 D2 L L1 L2 L3 Lmin Lmax J G
Cat. No. Range
3.41
2.697 3.141 1.752 4.16
1.25
2.776 0.98
M16
3.23
2.76
5/8-11
M16
1.988 2.394 1.752 3.744 2.992 2.362 0.689 2.19
2.72
0.75
0.75 ~ 0.25
CAT40 TUNGMAX 3/4X3.75BIN (1)
5/8-11
2.657 0.98
2.76
3.31
M20X2 1-8
1.25 ~ 0.25
2.697 3.141 2.752 4.05
3.3
1.25
CAT50 TUNGMAX 1-1/4X4.05BIN (2)
0.75 ~ 0.25

CAT50 TUNGMAX 3/4X4.13BIN (2)
.Add B for coolant through the flange 0.75 1.988 2.394 2.752 4.138 3.386 2.244 0.689 2.19 2.72 M16 1-8
Chucks with taper size 40 can be balanced by the balancing ring up to G2.5 at 20,000 min
-1 (1)
12 Chucks with taper size 50 can be balanced by the balancing ring up to G2.5 at 18,000 min
-1 (2)
note: Size table is inch.
note: Collets for CAT-MAX-BALAnCE can be found on pages 12-40 & 12-41

12–18
