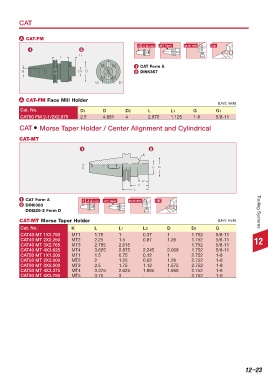

Page 931 - Tungaloy Catalog

CAT

A CAT-FM
A ➚ A 0.0002 AT3 Taper 58-60 HRC N5
1 2
L L1

1 CAT Form A
G D1 D 2 DIN6357

G1 D2

A CAT-FM Face Mill Holder
(Unit: inch)
Cat. No. D1 D D2 L L1 G G1
CAT50 FM 2-1/2X2.875 2.5 4.881 4 2.875 1.125 1-8 5/8-11
CAT• Morse Taper Holder / Center Alignment and Cylindrical

CAT-MT

1 2
K

G D D1

L2
L1
L

1 CAT Form A A ➚ A 0.0002 AT3 Taper 58-60 HRC N5
2 DIN6383
DIN228-2 Form D Tooling Systems
CAT-MT Morse Taper Holder (Unit: inch)
Cat. No. K L L1 L2 D D1 G
CAT40 MT 1X1.750 MT1 1.75 1 0.37 1 1.752 5/8-11
CAT40 MT 2X2.250 MT2 2.25 1.5 0.87 1.26 1.752 5/8-11 12
CAT40 MT 3X2.765 MT3 2.765 2.015 - - 1.752 5/8-11
CAT40 MT 4X3.625 MT4 3.625 2.875 2.245 2.008 1.752 5/8-11
CAT50 MT 1X1.500 MT1 1.5 0.75 0.12 1 2.752 1-8
CAT50 MT 2X2.000 MT2 2 1.25 0.62 1.26 2.752 1-8
CAT50 MT 3X2.500 MT3 2.5 1.75 1.12 1.575 2.752 1-8
CAT50 MT 4X3.375 MT4 3.375 2.625 1.995 1.969 2.752 1-8
CAT50 MT 5X3.750 MT5 3.75 3 - - 2.752 1-8
