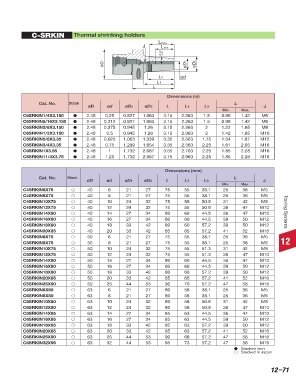

Page 979 - Tungaloy Catalog

C-SRKIN Thermal shrinking holders
Lmax.
J
Lmin.
4.5°
øD øD1 øD2

L3 ød
L1
L

Dimensions (in)
Cat. No. Stock L
øD ød øD1 øD2 L L1 L3 J
Min. Max.
C6SRKIN1/4X3.150  2.48 0.25 0.827 1.063 3.15 2.363 1.5 0.98 1.42 M5
C6SRKIN5/16X3.150  2.48 0.312 0.827 1.063 3.15 2.363 1.5 0.98 1.42 M6
C6SRKIN3/8X3.150  2.48 0.375 0.945 1.26 3.15 2.363 2 1.22 1.65 M8
C6SRKIN1/2X3.150  2.48 0.5 0.945 1.26 3.15 2.363 2 1.42 1.85 M10
C6SRKIN5/8X3.35  2.48 0.625 1.063 1.339 3.35 2.563 1.75 1.54 1.97 M12
C6SRKIN3/4X3.35  2.48 0.75 1.299 1.654 3.35 2.563 2.25 1.61 2.05 M16
C6SRKIN1X3.55  2.48 1 1.732 2.087 3.55 2.763 2.25 1.85 2.28 M16
C6SRKIN11/4X3.75  2.48 1.25 1.732 2.087 3.75 2.963 2.25 1.85 2.28 M16

Dimensions (mm)
Cat. No. Stock L
øD ød øD1 øD2 L L1 L3 J
Min. Max.
C4SRKIN6X75  40 6 21 27 75 55 38.1 25 36 M5
C4SRKIN8X75  40 8 21 27 75 55 38.1 25 36 M6
C4SRKIN10X75  40 10 24 32 75 55 50.8 31 42 M8
C4SRKIN12X75  40 12 24 32 75 55 50.8 36 47 M10
C4SRKIN14X80  40 14 27 34 80 60 44.5 36 47 M10 Tooling Systems
C4SRKIN16X80  40 16 27 34 80 60 44.5 39 50 M12
C4SRKIN18X80  40 18 33 42 80 60 57.2 39 50 M12
C4SRKIN20X85  40 20 33 42 85 65 57.2 41 52 M16
C5SRKIN6X75  50 6 21 27 75 55 38.1 25 36 M5
C5SRKIN8X75  50 8 21 27 75 55 38.1 25 36 M6 12
C5SRKIN10X75  50 10 24 32 75 55 51.3 31 42 M8
C5SRKIN12X75  50 12 24 32 75 55 51.3 36 47 M10
C5SRKIN14X80  50 14 27 34 80 60 44.5 36 47 M10
C5SRKIN16X80  50 16 27 34 80 60 44.5 39 50 M12
C5SRKIN18X80  50 18 33 42 80 60 57.2 39 50 M12
C5SRKIN20X85  50 20 33 42 85 65 57.2 41 52 M16
C5SRKIN25X90  50 25 44 53 90 70 57.2 47 58 M16
C6SRKIN6X80  63 6 21 27 80 58 38.1 25 36 M5
C6SRKIN8X80  63 8 21 27 80 58 38.1 25 36 M6
C6SRKIN10X80  63 10 24 32 80 58 50.8 31 42 M8
C6SRKIN12X80  63 12 24 32 80 58 50.8 36 47 M10
C6SRKIN14X85  63 14 27 34 85 63 44.5 36 47 M10
C6SRKIN16X85  63 16 27 34 85 63 44.5 39 50 M12
C6SRKIN18X85  63 18 33 42 85 63 57.2 39 50 M12
C6SRKIN20X85  63 20 33 42 85 63 57.2 41 52 M16
C6SRKIN25X90  63 25 44 53 90 68 57.2 47 58 M16
C6SRKIN32X95  63 32 44 53 95 73 57.2 47 58 M16
 : Stocked item
 : Stocked in Japan

12–71
