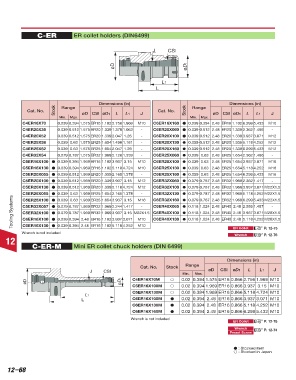

Page 976 - Tungaloy Catalog

C-ER ER collet holders (DIN6499)

J CSI

øD øD1

L1
L

Dimensions (in) Dimensions (in)
Cat. No. Stock Range øD CSI øD1 L L1 J Cat. No. Stock Range øD CSI øD1 L L1 J
Min. Max. Min. Max.
C4ER16X70 0.039 0.394 1.575 ER16 1.102 2.756 1.969 M10 C6ER16X160  0.039 0.394 2.48 ER16 1.102 6.299 5.433 M10
C4ER20X35 0.039 0.512 1.575 ER20 1.339 1.378 1.063 - C6ER20X060  0.039 0.512 2.48 ER20 1.339 2.362 1.496 -
C4ER20X52 0.039 0.512 1.575 ER20 1.339 2.047 1.26 - C6ER20X100  0.039 0.512 2.48 ER20 1.339 3.937 3.071 M12
C4ER25X38 0.039 0.63 1.575 ER25 1.654 1.496 1.181 - C6ER20X130  0.039 0.512 2.48 ER20 1.339 5.118 4.252 M12
C4ER25X52 0.039 0.63 1.575 ER25 1.654 2.047 1.26 - C6ER20X160  0.039 0.512 2.48 ER20 1.339 6.299 5.433 M12
C4ER32X54 0.079 0.787 1.575 ER32 1.969 2.126 1.339 - C6ER25X060  0.039 0.63 2.48 ER25 1.654 2.362 1.496 -
C5ER16X100  0.039 0.394 1.969 ER16 1.102 3.937 3.15 M10 C6ER25X100  0.039 0.63 2.48 ER25 1.654 3.937 3.071 M16
C5ER16X130  0.039 0.394 1.969 ER16 1.102 5.118 4.724 M10 C6ER25X130  0.039 0.63 2.48 ER25 1.654 5.118 4.252 M16
C5ER20X055  0.039 0.512 1.969 ER20 1.339 2.165 1.378 - C6ER25X160  0.039 0.63 2.48 ER25 1.654 6.299 5.433 M16
C5ER20X100  0.039 0.512 1.969 ER20 1.339 3.937 3.15 M12 C6ER32X060  0.079 0.787 2.48 ER32 1.969 2.362 1.417 -
C5ER20X130  0.039 0.512 1.969 ER20 1.339 5.118 4.724 M12 C6ER32X100  0.079 0.787 2.48 ER32 1.969 3.937 3.071 M22X1.5
C5ER25X055  0.039 0.63 1.969 ER25 1.654 2.165 1.378 M16 C6ER32X130  0.079 0.787 2.48 ER32 1.969 5.118 4.252 M22X1.5
-
Tooling Systems C5ER32X057  0.079 0.787 1.969 ER32 1.969 2.244 1.417 M10 C6ER40X065  0.118 1.024 2.48 ER40 2.48 2.559 1.457 -
C5ER25X100  0.039 0.63 1.969 ER25 1.654 3.937 3.15
C6ER32X160  0.079 0.787 2.48 ER32 1.969 6.299 5.433 M22X1.5
-
C5ER32X100  0.079 0.787 1.969 ER32 1.969 3.937 3.15 M22X1.5 C6ER40X100  0.118 1.024 2.48 ER40 2.48 3.937 3.071 M28X1.5
C6ER40X130  0.118 1.024 2.48 ER40 2.48 5.118 4.252 M28X1.5
C6ER16X100  0.039 0.394 2.48 ER16 1.102 3.937 3.071
C6ER16X130  0.039 0.394 2.48 ER16 1.102 5.118 4.252
☞
Wrench is not included M10 ER Collet ☞ P. 12-75
Wrench
P. 12-76
12
C-ER-M Mini ER collet chuck holders (DIN 6499)
Dimensions (in)
Cat. No. Stock Range
J CSI øD CSI øD1 L L1 J
Min. Max.
øD øD1 C4ER16X70M  0.02 0.394 1.575 ER16 0.866 2.756 1.969 M10
C5ER16X100M  0.02 0.394 1.969 ER16 0.866 3.937 3.15 M10
C5ER16X130M  0.02 0.394 1.969 ER16 0.866 5.118 4.724 M10
L1
L C6ER16X100M  0.02 0.394 2.48 ER16 0.866 3.937 3.071 M10
C6ER16X130M  0.02 0.394 2.48 ER16 0.866 5.118 4.252 M10
C6ER16X160M  0.02 0.394 2.48 ER16 0.866 6.299 5.433 M10
Wrench is not included
ER Collet ☞ P. 12-75
Wrench ☞ P. 12-74
Preset Screw

 : Stocked item
 : Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
12–68
